CNC Turning Services
What is CNC Turning?

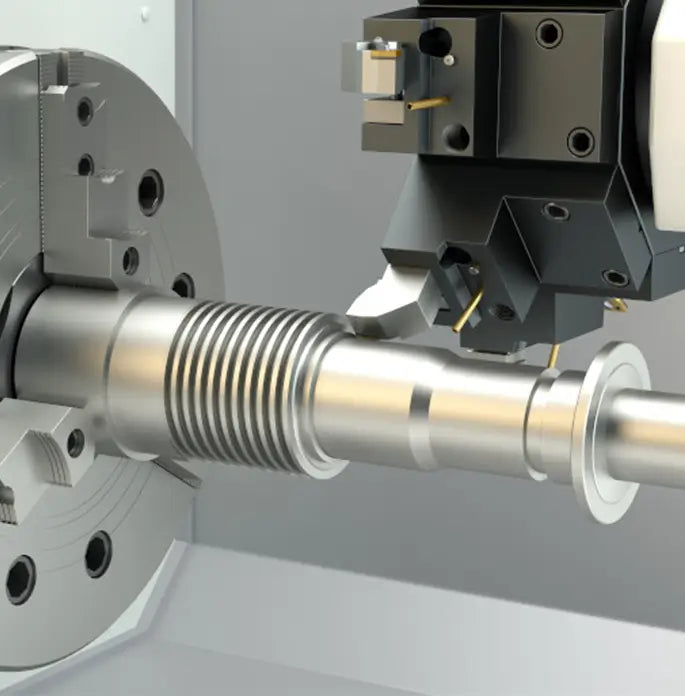

CNC turning creates parts by rotating a blank on a chuck while stationary cutting tools remove material. It's ideal for producing symmetrical parts along a central axis and is often faster and more cost-effective than CNC milling.
CNC Turning Machine Parts
Familiarizing yourself with the key components of a CNC turning machine is essential to understanding the turning process. While the specific parts may vary by manufacturer, type, and machine capacity, most CNC turning machines share several fundamental components:
Control Unit: The brain of the machine, it processes operator input and translates it into precise movements and operations.
Spindle: This part holds and rotates the workpiece, ensuring it stays in position during the turning process.
Turret: A rotating platform that houses and indexes multiple cutting tools, allowing for versatile operations.
Tool Holder: An adjustable device mounted on the turret that securely holds the cutting tools in place.
Cutting Tool: The actual tool responsible for removing material from the workpiece to achieve the desired shape and finish.
Maximum part size for CNC turning
| Size | Metric units | Imperial units |
|---|---|---|
| Maximum part diameter | 431 mm | 17 in |
| Maximum part length | 990 mm | 39 in |
| Maximum swing over the carriage | 350 mm | 13.7 in |
| Maximum spindle through-hole | 40mm | 1.5in |
| Maximum speed: 1700RPM, Motor power: 640W | ||
CNC turning tolerances
| Limits for nominal size | Plastics | Metals |
|---|---|---|
| 0.5mm-3mm | ±0.1mm | ±0.05mm |
| Over 3mm to 6mm | ±0.1mm | ±0.05mm |
| Over 6mm to 30mm | ±0.2mm | ±0.1mm |
| Over 30mm to 120mm | ±0.3mm | ±0.15mm |
| Over 120mm to 400mm | ±0.5mm | ±0.2mm |
| Over 400mm to 1000mm | ±0.8mm | ±0.3mm |
| Over 1000mm to 2000mm | ±1.2mm | ±0.5mm |
| Over 2000mm to 4000mm | ±2mm | |
| Please clearly indicate tolerances for nominal sizes below 0.5mm on your technical drawing. | ||
CNC Turning Design Guidelines
Ensure optimal results by following recommended design guidelines for CNC turned parts. These guidelines help achieve precision, efficiency, and manufacturability.
| Feature | Recommended size | Feasible size |
|---|---|---|
| Min. feature size | Ø 2.5 mm | Ø 0.50 mm |
| Internal edges | R 8 mm | R 0.25 mm |
| Minimum wall thickness | 0.8 mm (for metals) 1.5 mm (for plastics) | 0.5 mm (for metals) 1.0 mm (for plastics) |
| Holes | Diameter: standard drill bit sizes Depth: 4 x diameter | Diameter: Ø 0.5 Depth: 10 x diameter |
| Threads | Size: M6 or larger Length: 3 x diameter | Size: M2 |
Available Materials for CNC Turning
Industry-leading companies in sectors such as aerospace, automotive, defense, machinery, medical technology, robotics, electronics, oil & gas, and industrial automation rely on CNC turning for parts that demand high precision and complexity. We cater to these industries by providing rapid prototypes and production parts using a wide range of materials, including:
- Aluminum
- Stainless Steel
- Brass
- Copper
- Titanium
- Plastics (e.g., ABS, PEEK, Nylon)
These materials ensure the durability, precision, and versatility required for demanding applications.
CNC Turning Surface Finishes
Enhance the performance and appearance of your parts by selecting surface finishes that improve various properties such as roughness, hardness, chemical resistance, and cosmetic appeal. Common surface finishes for CNC turned components include:
- Anodizing (Aluminum)
- Powder Coating
- Electroplating
- Bead Blasting
- Polishing
- Passivation (Stainless Steel)
These surface treatments can be tailored to meet the functional and aesthetic needs of any industry.
Precision CNC Turning Services
Hotean CNC turning services provide high-precision manufacturing solutions tailored to your needs. With expertise in machining a wide range of materials, including metals and plastics, we deliver complex parts with exacting tolerances. From prototyping to high-volume production, we ensure fast turnaround times and consistent quality, making us your trusted partner for custom machining projects.
Customization Services
Hotean offers fully customized CNC turning services based on your designs, blueprints, or samples. Our engineering team works closely with you to modify designs and optimize manufacturing processes, providing value-added solutions for even the most complex requirements. Whether you need unique parts or adjustments to improve functionality, we are here to support you with our flexible, customer-driven approach.
Fast Response & Delivery
With an efficient production system and proven track record, Hotean quickly responds to customer requests and easily handles both small and large batch orders. Our factory’s agility allows us to meet tight deadlines without sacrificing quality. We’ve helped numerous clients reduce lead times by up to 30%, ensuring their projects stay on track.
FAQs
MOST FREQUENT QUESTIONS AND ANSWERSQ1. What differentiates your CNC turning service from others?
A1: Our CNC turning service stands out due to our extensive expertise in precision machining, combined with the latest turning technologies. We use advanced lathes and multi-axis machines to handle complex designs and ensure high accuracy. We focus on delivering custom solutions with quick turnaround times, flexible production volumes, and exceptional attention to detail.
Q2. How do you handle complex geometries in CNC turning?
A2: We utilize advanced CNC lathes with live tooling, allowing us to create intricate shapes and features such as grooves, threads, and off-center drilling. Our multi-axis turning capabilities enable us to machine parts with complex geometries in a single setup, which reduces errors and ensures greater precision.
Q3. Can you produce high-tolerance CNC turned parts?
A3: Yes, we specialize in producing CNC turned parts with high tolerances, down to ±0.001 inches (±0.025 mm). Our advanced CNC turning machines and skilled technicians ensure that parts are machined to the highest standards of precision, whether you need tight tolerances for functional components or complex parts with detailed features.
Q4. What industries do you serve with CNC turning services?
A4: We serve a wide variety of industries, including aerospace, automotive, medical devices, electronics, and industrial equipment. Whether you need critical components for high-performance systems or durable parts for consumer products, we have the experience and capacity to meet the specific needs of each sector.
Q5. How do you manage custom orders and ensure they meet my specific requirements?
A5: We work closely with you from the outset to understand your exact requirements. Our engineering team reviews your CAD files, discusses design considerations, and suggests improvements if needed. We provide regular updates throughout the production process to ensure that your custom order is executed to your exact specifications.
Q6. What types of finishes can you provide for CNC turned parts?
A6: We offer a wide range of finishes, including anodizing, plating (nickel, chrome), powder coating, polishing, and bead blasting. These finishes can enhance the appearance, corrosion resistance, and durability of your parts. Let us know your desired finish, and we will guide you on the best options based on your part material and application.
Q7. How do you handle low-volume and high-volume CNC turning orders?
A7: We can handle both low-volume custom orders as well as high-volume production runs. For low-volume projects, we offer flexibility and quick turnaround times to ensure that your parts are delivered when you need them. For larger production runs, we leverage automation and efficient machining practices to offer competitive pricing without compromising on quality.
Q8. What is your process for prototyping CNC turned parts?
A8: Our prototyping process is designed to help you validate your design before moving into full-scale production. After receiving your design, we manufacture a prototype that matches your exact specifications. You can review the prototype for fit, function, and design accuracy before proceeding to full production, ensuring minimal risk and fast iteration.
Q9. Can you meet strict deadlines for CNC turning projects?
A9: Yes, we are committed to meeting tight deadlines. Whether you need prototypes quickly or have urgent production requirements, we can prioritize your project and work with you to ensure on-time delivery. Our efficient scheduling and production processes allow us to handle rush orders without sacrificing quality.
