Custom Coffee Machine Parts With Efficiency
At Hotean, “efficiency” means more than speed. It’s about providing the right precision component at the right time. Whether you need high-performance grinder burrs ready to ship, or are developing next-generation coffee equipment requiring custom replacement parts, housings, or complex mechanisms, we deliver. Our integrated approach combines CNC machining, die casting, and 3D printing to ensure your project—from a single prototype to full-scale production—moves forward without compromise.
Efficiency Defined: Our 4-Step Process for Precision Custom Parts
This proven workflow is how we transform your concepts into reliable, high-performance components—whether you need ready-to-ship grinder burrs or are developing custom coffee machine parts from scratch using CNC machining, die casting, 3D printing,and so on.
Consult & Plan
We analyze your needs to define specs and select the optimal manufacturing path.

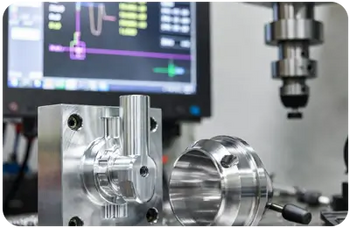

Engineer & Tool
We perform DFM and prepare the right tools—CNC programs, molds, or print parameters.

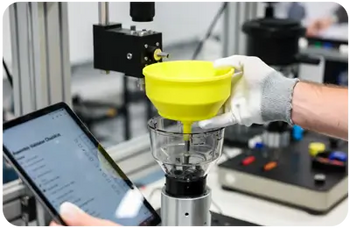

Prototype & Validate
We create tangible prototypes for fit, function, and aesthetic validation, enabling fast iterations.

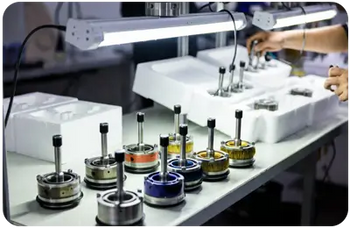

Produce & Deliver
We execute quality-controlled production and ensure on-time delivery of your parts.
Ready to start your custom project? Our process is designed for your success.
Custom coffee machine parts manufacturing capabilities
We integrate advanced CNC machining, die casting, and additive manufacturing to deliver optimal solutions—whether for intricate grinder burrs or robust structural housings.

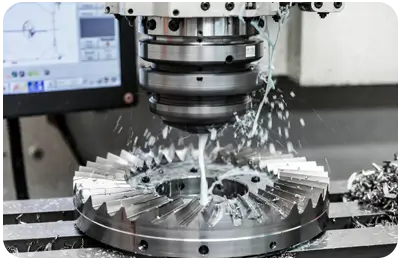

CNC Machining
Unmatched precision for complex geometries and tight tolerances.
Applications:
Precision Grinder Burrs (Flat & Conical)
Complex Brew Group Components
High-Wear Gears and Shafts

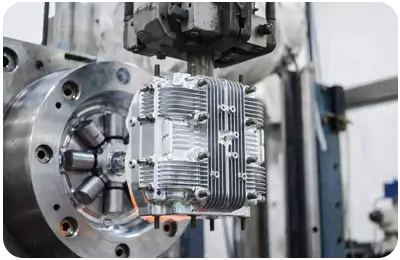

Die Casting
High-strength, high-volume production with excellent surface finish.
Applications:
Coffee Machine Housings & External Panels
Heat Sink Components for Boiler Systems
Ergonomic Portafilter Handles

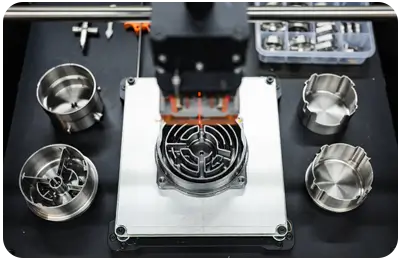

3D Printing
Unparalleled freedom for prototypes, lightweighting, and complex internal structures.
Applications:
Functional Prototypes & Custom Tools
Parts with Integrated Cooling Channels
Lightweight, Topology-Optimized Brackets
High Quality Materials for Coffee Equipment
Our expertise guides you through high-performance options—from wear-resistant stainless steel for grinder burrs to thermally conductive brass for brew groups and lightweight aluminum for housings. We ensure every material meets precise requirements for durability, food safety, and manufacturability in custom coffee machine parts.
| Material Class & Visual | Common Grades & Notes | Key Characteristics | Primary Coffee Equipment Applications |
|---|---|---|---|
Stainless Steel
|
440C, 304, 316 Ideal for food contact & high wear |
Exceptional wear resistance and hardness. Offers excellent corrosion resistance and meets food safety standards. | Grinder burrs, brew group components, steam wand tips, fasteners, structural frames, and housings for high-moisture environments. |
Aluminum Alloys
|
6061, 6063, 5052 Excellent for lightweighting & complex shapes |
High strength-to-weight ratio, good thermal conductivity. Easily machined, cast, or extruded. Accepts various anodized finishes. | Machine housings and panels, portafilter handles, heat sinks, drip trays, and internal lightweight brackets. |
Brass & Copper Alloys
|
C36000, C26000 Superior thermal conductivity |
Outstanding thermal and electrical conductivity. Good machinability and natural antimicrobial properties. Often used where heat transfer is critical. | Brew groups and shower heads, boiler components, heat exchange units, steam valves, and decorative accent pieces. |
Engineering Plastics
|
POM (Acetal), PA66 (Nylon), PC, PEEK For insulation, wear, and complex parts |
Lightweight, excellent electrical insulation, low friction, and good chemical resistance. Allows for complex geometries with features like snap-fits. | Hoppers and bean chutes, gear assemblies, water tank components, button caps, insulating spacers, and custom jigs/fixtures. |
Zinc Alloy (ZAMAK)
|
ZAMAK 3, ZAMAK 5 Cost-effective for high-volume small parts |
High dimensional stability and good strength for small, intricate parts. Ideal for high-pressure die casting of thin-walled components. | Small levers, knobs, decorative trim, intricate brackets, and internal mechanisms requiring high-volume production. |
Advanced Surface Finishes with Enhancing Performance
Our surface treatments—from hard anodizing for wear resistance to electroless nickel for corrosion protection and precision polishing for hygiene—are engineered to extend the life of critical components like brew groups and housings, while providing the premium look and feel that defines high-end coffee equipment.
|
|
|
|
Anodizing (Type II/III) Creates a hard, corrosion-resistant oxide layer on aluminum. Type III (hard coat) offers exceptional durability. Available in various colors for branding. Common Use: Machine housings, handles, trim pieces. |
Electroless Nickel Plating Provides a uniform, wear-resistant, and corrosion-resistant metallic coating. Excellent for complex geometries and offers good lubricity. Common Use: Brew group components, valves, wear surfaces. |
Polishing / Mirror Finish Produces a smooth, reflective surface that reduces adhesion of coffee oils and residues, making cleaning easier and enhancing aesthetic appeal. Common Use: Portafilters, steam wands, exposed brass or stainless components. |
|
|
|
|
Powder Coating A durable, thick polymer coating applied electrostatically. Superior to paint for impact and corrosion resistance. Wide range of colors and textures. Common Use: External frames, bases, structural components. |
Bead Blasting Creates a uniform, non-directional matte or satin finish. Excellent for hiding tool marks, providing a consistent substrate for coating, and a clean, modern look. Common Use: Aluminum or stainless housings, internal brackets. |
Brushed Finish A directional satin texture created by abrasive brushing. Elegant appearance that effectively conceals fingerprints and fine scratches from daily use. Common Use: Control panels, side panels, accent strips. |
Gallery of custom coffee machine parts
Aluminum Engine Housing
High-pressure die cast for complex geometry, with Type III hard anodizing.
Brass Brew Unit
CNC machined for thermal conductivity, mirror-polished for hygiene and aesthetics.
Flat Burrs Set
Standard sizes: 54mm, 64mm, 98mm. Custom sizes up to 180mm available. Engineered for maximum grind uniformity, throughput, and durability in high-volume settings.
Titanium-Coated Conical Burr
Features a Titanium Nitride (TiN) PVD coating on a steel base. Extends service life significantly and provides a distinctive gold accent for high-end machines.
CNC Machined Portafilter
Engineered from solid stainless steelfor perfect balance and heat retention. Features precise CNC-machined threads for a secure, leak-free lock into the group head and a ergonomic design for barista comfort during high-volume use.
Conical Burr Set
CNC precision machined from wear-resistant 420 stainless steel. Designed for consistent grind in automatic machines like Jura, Saeco, and so on
Wear-Resistant Gear Set
Injection molded from POM plastic for low friction and long service life.
Multi-Hole Steam Tip
Precision CNC-machined from food-grade 316 stainless steel. The multi-hole (typically 4-hole) design creates a drier, more powerful steam for faster and finer microfoam, essential for professional latte art. Features easy-to-clean construction.
Explore our Precision CNC Burr Collection (38mm-140mm)
Built on a decade of CNC expertise.
FAQ
MOST FREQUENT QUESTIONS AND ANSWERSQ1: What coffee machine parts can you produce?
A1: We can customize a wide range of parts, including but not limited to housings, blades, gears, brackets, handles, and other essential components for appliances like chef machines, food processors, juicers, and blenders.
Q2: What materials do you support for customization
A2: We support materials such as stainless steel (304, 316), aluminum alloys (6061, 6063), brass (C36000, C37700), engineering plastics (POM, PC, PA66), carbon steel, ceramic (zirconia), and zinc alloy (Zamak 3).
Q3: Can you help with the redesign of existing parts?
A3: Yes, we can assist in redesigning or modifying your existing parts to improve performance, reduce costs, or optimize them for manufacturing. Our engineering team will work closely with you to ensure the redesign meets your requirements.
Q4:Do you support custom branding on parts, such as logos or specific markings?
A4: Yes, we can incorporate custom branding, such as engraved logos, laser etching, or specific markings on your parts, depending on your branding needs and the material of the component.
Q5:What tolerances can you achieve for precision parts?
A5:We can achieve tight tolerances as low as ±0.01mm, depending on the material and part complexity. We will work with you to determine the necessary tolerances for your specific application.
Q6:What information do I need to provide for a custom parts order?
A6: To start, please provide detailed drawings or 3D models of the parts, along with your material preferences, surface finish requirements, and any specific tolerances. Our team can assist you in finalizing the details if needed.
Q7: Can you work with environmentally friendly or food-grade materials?
A7: yes, we can source and work with environmentally friendly or food-grade materials, such as food-grade stainless steel (304, 316) and BPA-free plastics, to meet industry regulations and your specific project needs.
Q8:How do you handle packaging and shipping for custom parts?
A8: We ensure that all parts are carefully packaged to prevent damage during shipping. We offer a range of shipping options and can accommodate special packaging requirements if needed, whether for domestic or international delivery.
Q9: Do you support small-batch production?
A9: Yes, we accept small-batch production orders, which are ideal for product development and market testing phases
