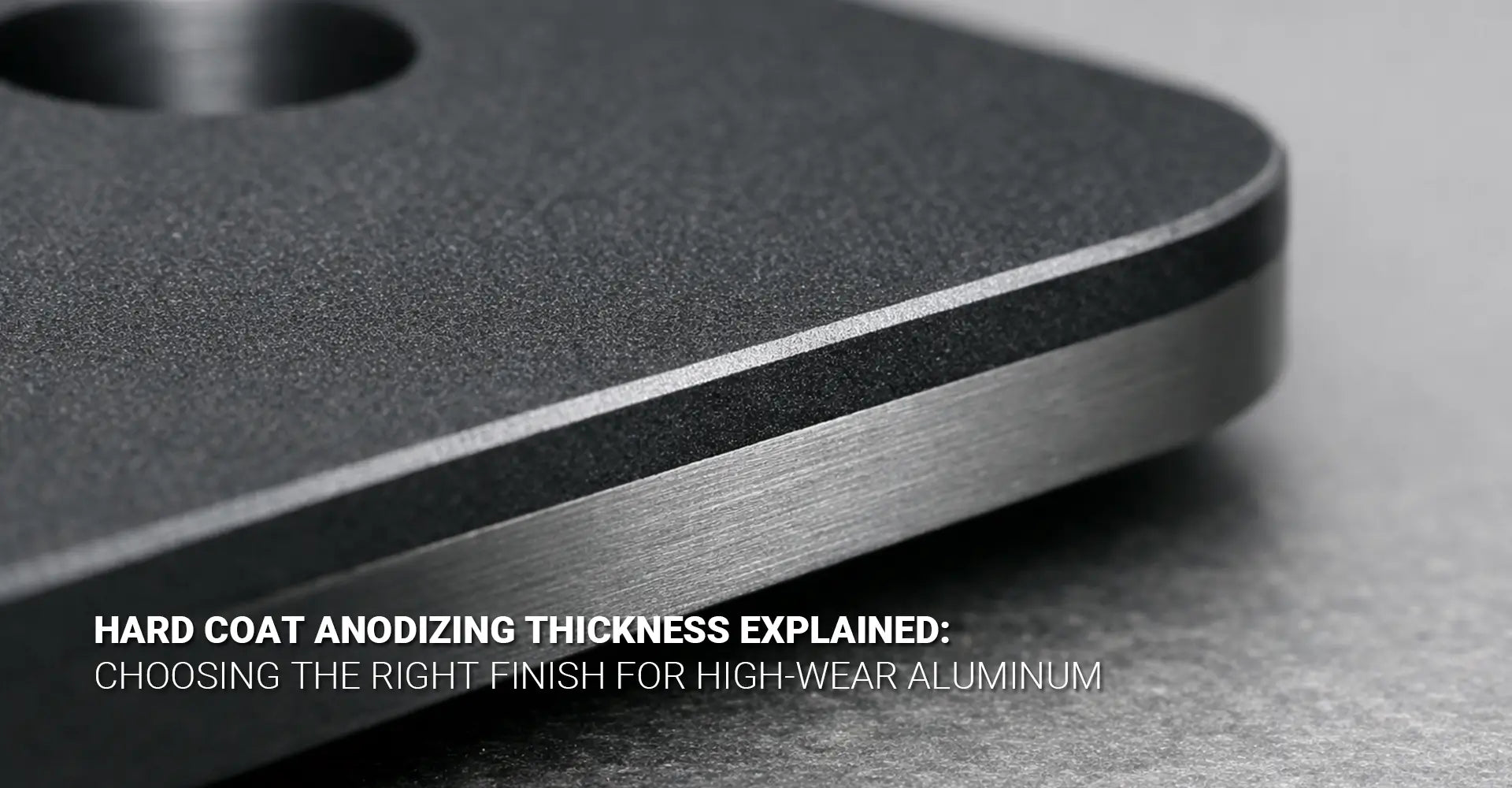

How Thick Should Hard Coat Anodizing Be for Wear Parts?

How Thick Should Hard Coat Anodizing Be for Wear Parts?

Choosing the right surface treatment for aluminum parts can make or break your product's performance. When your components face sliding friction, high contact pressure, or abrasive environments, the difference between standard and hard anodizing isn't just academic—it's the difference between a part that lasts thousands of cycles and one that survives hundreds of thousands. Engineers working on hydraulic systems, pneumatic actuators, and precision linear guides face this decision constantly, and getting it wrong means costly field failures, warranty claims, and downtime.

Quick Answer: What You Need to Know Right Now

Standard Anodizing (Type II):

Thickness: 5–25 μm

Hardness: 150–250 HV

Best for: Decorative parts, corrosion protection, light-duty applications

Hard Coat Anodizing (Type III):

Thickness: 25–100 μm (typically 50 μm for wear parts)

Hardness: 300–600+ HV

Best for: Hydraulic pistons, cylinder bores, linear guides, high-load sliding surfaces

Bottom line: If your aluminum part slides, reciprocates, or bears significant load, a 50 μm hardcoat layer will typically outlast a 10 μm standard coating by 10–100 times in real-world service.

Why This Matters for Your Design

The coating thickness you choose directly impacts three critical factors: how long your part survives under load, how much your dimensions change during processing, and how much you'll spend on both the initial coating and long-term maintenance. Understanding the hard coat anodizing thickness requirements for your application helps you avoid over-engineering (and overspending) on low-stress parts while preventing premature failure on high-demand components. Additionally, modern CNC machining services must account for post-anodizing dimensional changes to maintain tight tolerances.

Table of Contents

1. What Is the Real Difference Between Hard Anodizing and Standard Anodizing?

2. Why Does Coating Thickness Determine Wear Life in Friction Pairs?

3. When Should You Specify Hard Coat Anodizing for Pistons and Cylinders?

4. How Does Hard Coat Anodizing Change Part Dimensions and Tolerances?

5. Is Hard Coat Anodizing Worth the Extra Cost for Your Application?

6. Conclusion

What Is the Real Difference Between Hard Anodizing and Standard Anodizing?

Understanding the Two Processes

Most engineers encounter two main anodizing standards when selecting surface finish treatments for aluminum: Type II (standard) and Type III (hardcoat). Both processes use electrolytic oxidation to grow a ceramic-like aluminum oxide layer on the metal surface, but they differ dramatically in processing conditions and resulting properties. The question of hard anodizing vs regular anodizing comes down to understanding what each process delivers and when each makes sense.

Side-by-Side Comparison

The Chemistry Behind the Hardness

Standard anodizing typically runs in a sulfuric acid bath at moderate temperatures (around 20°C) and relatively lower current densities. In contrast, hard anodizing uses colder electrolyte (often near 0°C), higher voltage, and specialized acid mixtures to force denser oxide growth. This harsh environment produces a thicker, harder ceramic structure with less porosity in the outer layer. The result is a coating that approaches the hardness of hardened tool steel rather than the softer oxide film you get from conventional processing. Furthermore, the difference in type II vs type III anodizing becomes immediately visible: Type II coatings can be dyed bright colors and maintain a smooth finish, while Type III surfaces emerge dark gray to charcoal black with a slightly matte texture due to the extreme growth conditions.

Why Does Coating Thickness Determine Wear Life in Friction Pairs?

The Abrasion Mechanism Explained

Every time two surfaces slide past each other, microscopic asperities on the harder surface plow tiny furrows in the softer one, removing material atom by atom. Even with lubrication, this wear continues—just at a slower rate. Therefore, anodized coatings act as a sacrificial barrier: they wear away gradually while protecting the softer aluminum underneath. Once the coating wears through to the base metal, wear accelerates dramatically because aluminum is much softer than its oxide.

Thickness as a Wear Budget

Key insight: A 10 μm coating may wear through in hundreds of cycles under high contact stress, while a 50 μm coating can last tens of thousands of cycles in the same application.

Think of coating thickness as a wear budget. Consequently, if each stroke or rotation removes 0.1 μm of material, a 10 μm coating gives you roughly 100 strokes before breakthrough. However, a 50 μm coating gives you 500 strokes—five times longer life from five times the thickness. In reality, the relationship isn't perfectly linear because thicker coatings also exhibit better load distribution and reduced contact pressure, but the principle holds: more thickness equals more cycles to failure. This anodizing thickness comparison 10 μm vs 50 μm reveals why critical wear parts almost always justify the thicker coating.

How Lubrication and Surface Finish Interact with Thickness

Thicker hardcoat layers have another advantage: they provide more depth for oil retention pockets. Moreover, the slightly rougher surface of hardcoat anodizing traps lubricant in microscopic valleys, creating a better hydrodynamic film between moving parts. Sealed porosity (achieved through a post-anodize sealing step) further improves hard anodizing wear resistance by preventing lubricant and contaminants from penetrating the coating structure. Engineers designing industrial machinery components often combine hardcoat anodizing with specific lubricants to maximize this synergy. Real-world testing on hydraulic actuators shows that a sealed, lubricated 50 μm hardcoat surface can deliver 100 times the wear life of an unsealed 10 μm standard anodizing in contaminated environments.

When Should You Specify Hard Coat Anodizing for Pistons and Cylinders?

Hydraulic and Pneumatic Demands

Hydraulic and pneumatic systems subject aluminum components to a brutal combination of stresses: reciprocating motion that racks up millions of cycles, sealing pressures that concentrate contact forces, and working fluids that may carry abrasive contamination. Standard anodizing simply cannot survive this combination for long. Therefore, hardcoat anodizing for pistons and cylinders has become the industry standard for any application where reliability and service life matter.

Decision Criteria Checklist

Use hardcoat anodizing when:

1. Contact pressure exceeds approximately 5 MPa

2. Sliding distance per cycle is high (long stroke actuators, extended travel guides)

3. Operating environment includes dust, sand, metal particles, or other abrasives

4. Maintenance intervals must be extended (remote installations, sealed-for-life designs)

5. Standard anodizing has already failed prematurely in field testing or prototype evaluation

The part operates in die casting assemblies where dimensional stability under wear is critical

Conversely, stick with standard anodizing for static parts, infrequent-cycle applications, or components where cost constraints outweigh performance demands.

Real-World Case Study: Construction Equipment Actuator

A manufacturer of mobile construction equipment initially specified standard anodizing on actuator rods to save cost. However, field returns showed rod wear-through after approximately 50,000 extend-retract cycles—far short of the 500,000-cycle design target. Dust ingress past the wiper seal was acting like lapping compound, polishing through the thin oxide layer in weeks rather than years. After switching to 50 μm hardcoat anodizing and adding a secondary wiper seal, the same rod design exceeded 500,000 cycles in accelerated testing and showed minimal wear in two-year field trials. The cost premium for hardcoat added roughly $15 per rod, but warranty claims dropped by over $200,000 annually across the product line. This example of hardcoat anodizing for hydraulic components demonstrates how the right coating thickness pays for itself many times over in demanding applications.

How Does Hard Coat Anodizing Change Part Dimensions and Tolerances?

The Growth Mechanism

Unlike paint or plating, anodizing doesn't just sit on top of the aluminum—it grows both into the base metal and outward from the original surface. Specifically, the aluminum at the surface oxidizes and expands in volume as it transforms from metal to ceramic oxide. This creates anodizing dimensional change and growth that designers must account for in their tolerance stack-up calculations.

Dimensional Growth Rules

Growth rule of thumb:

Approximately 50% of the coating thickness grows inward (consuming base metal), and 50% grows outward from the original surface. Therefore, for a 50 μm coating, expect roughly 25 μm added to each surface radius or diameter. Similarly, a shaft with an initial 20.000 mm diameter will measure approximately 20.050 mm after 50 μm hardcoat anodizing (adding 25 μm per side).

Critical fits—such as bearing bores, seal grooves, and mating diameters—must account for this growth in the design phase. Consequently, if your final diameter specification is 20.000 mm ±0.010 mm after anodizing, you need to machine the pre-anodize diameter to approximately 19.950 mm to hit the target after coating growth.

Design Strategies for Tight Tolerances

Engineers use several approaches to manage anodized aluminum surface hardness while maintaining dimensional control:

Pre-anodize machining oversize: Calculate the expected growth and machine parts undersize by that amount. This works well for external diameters, lengths, and non-critical features.

Post-anodize grinding or honing: For critical bearing surfaces or seal bores, some designers specify hardcoat anodizing followed by precision grinding to bring dimensions back to final tolerance. This removes some coating thickness but still leaves 30–40 μm of hard surface—plenty for most wear applications. When combined with precision aluminum anodizing processes, this approach delivers both hardness and tight tolerances.

Selective masking: Mask areas that cannot tolerate dimensional change (precision bore diameters, threaded holes, precision faces) and anodize only the wear surfaces. This adds cost and complexity but solves impossible tolerance situations.

Choose standard anodizing instead: If cosmetic appearance or extremely tight tolerances are paramount and wear loads are light, standard anodizing's thinner coating may be the better compromise despite lower hardness.

Is Hard Coat Anodizing Worth the Extra Cost for Your Application?

Understanding the Cost Premium

Hardcoat anodizing typically costs 50–150% more per part than standard anodizing, depending on part size, complexity, and production volume. This premium reflects longer tank time (sometimes several hours vs. 30–60 minutes), higher electrical energy consumption, tighter process control requirements, and more demanding chemistry management. Additionally, some anodizers charge extra for very thick coatings (above 75 μm) or difficult alloys. At first glance, this seems like a significant penalty.

Cost vs. Benefit Analysis

Evaluate total cost of ownership, not just piece price:

✅ High replacement cost or downtime → hardcoat justified
If changing a failed component requires disassembling expensive equipment, paying field technicians, or halting production, then the premium for a coating that lasts 10 times longer is trivial compared to avoided downtime costs.

✅ Safety-critical wear surface → hardcoat justified
Brake components, flight control actuators, medical device mechanisms—any application where wear-related failure could injure people or cause catastrophic system failure justifies maximum durability.

✅ Purely decorative, low-load part → standard anodizing sufficient
Architectural trim, consumer electronics housings, and furniture components rarely justify hardcoat pricing when they'll never see significant wear or load.

✅ Prototype or low-volume run → evaluate lifecycle cost
For R&D or small production batches, the cost difference per part may be large in percentage terms but small in absolute dollars. Therefore, spending an extra $50 per prototype to validate real-world durability can save tens of thousands in redesign costs later.

Process Limits and Trade-offs

Not all aluminum alloys accept hardcoat anodizing equally well. High-silicon casting alloys (such as A380 or A383) often struggle to build thick, uniform coatings due to the silicon particles disrupting oxide growth. Similarly, complex geometries with deep recesses, sharp internal corners, or very thin walls may limit achievable thickness because current distribution becomes uneven in the anodizing tank. In these cases, engineers face difficult trade-offs: accepting thinner coatings (perhaps 30–40 μm instead of 50 μm), redesigning part geometry for better coating uniformity, switching to a more anodize-friendly alloy, or choosing an entirely different surface treatment. Moreover, hardcoat surfaces emerge rougher and darker than standard anodizing—usually a charcoal gray to black color with a slightly matte finish. If your application demands bright colors or a polished appearance, you cannot achieve that with hardcoat anodizing. The friction and wear of hard anodized aluminum benefits must outweigh the aesthetic limitations.

Conclusion

Three Key Takeaways

1. Thickness matters tremendously: A 50 μm hardcoat anodized surface will outlast a 10 μm standard anodized surface by 10 to 100 times in high-wear applications. This isn't a minor difference—it's the difference between premature field failures and meeting or exceeding design life targets. When sliding friction, abrasive contamination, or high contact pressures are present, thicker is almost always better within practical limits.

2. Design for dimensional growth: Hardcoat anodizing adds material to your part surfaces, typically growing outward by about half the coating thickness on each face. Therefore, critical dimensions, bearing fits, and seal grooves must be designed with this growth in mind from the start. Trying to retrofit hardcoat anodizing onto a design toleranced for standard anodizing leads to interference fits, binding, and expensive rework.

3. Match coating to load and budget: Use hardcoat anodizing where wear resistance, surface hardness, and long service life justify the cost premium—hydraulic pistons, linear guide rails, wear plates, and any component where replacement is expensive or dangerous. Conversely, stick with standard anodizing for decorative parts, corrosion protection on static components, and applications where loads remain light and cycle counts stay low. The right choice depends on understanding your actual operating conditions, not just defaulting to the cheapest or most impressive-sounding option.

Take Action Early

The most successful designs integrate surface treatment decisions early in the development process, not as an afterthought during production. Consult with your anodizing supplier during the design phase to lock in the right thickness target, establish pre-anodize machining dimensions, and verify that your chosen alloy and geometry can actually achieve the coating properties you need. This proactive approach prevents costly redesigns, improves first-time quality, and ensures your aluminum components deliver the durability your application demands.
