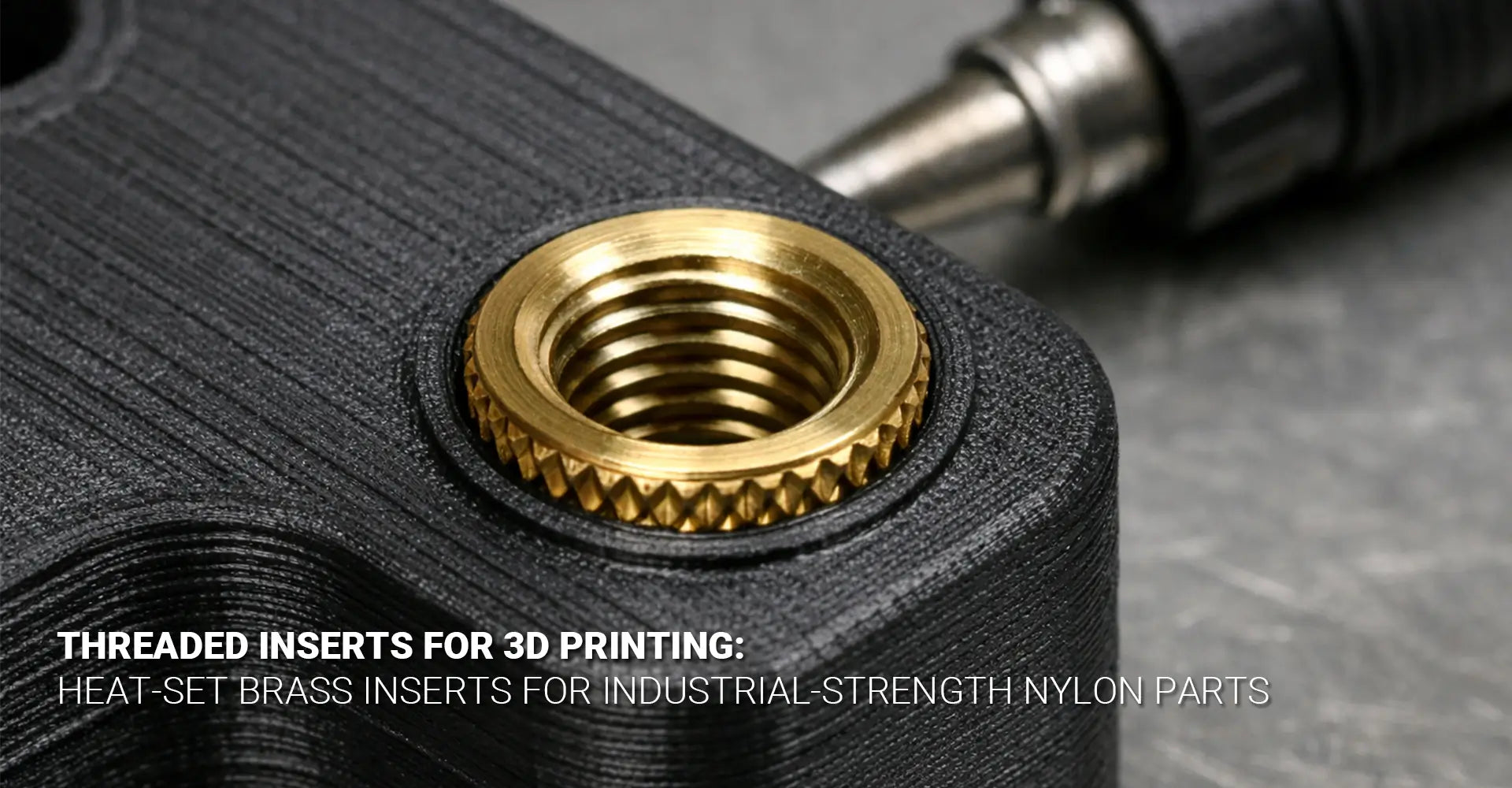

How Do You Stop 3D Printed Threads From Stripping? A Complete Guide to Threaded Inserts for Nylon Parts

How Do You Stop 3D Printed Threads From Stripping? A Complete Guide to Threaded Inserts for Nylon Parts

If you've ever tightened a screw into a 3D printed part only to feel it suddenly spin freely, you know the frustration of stripped threads. This common problem plagues makers, engineers, and manufacturers alike, turning promising prototypes into unusable parts after just one or two assembly cycles. However, there's a proven solution that transforms weak printed threads into industrial-strength fastening points: threaded inserts for 3D printing. These small brass components, when properly designed and installed, can increase your assembly strength by 10 to 15 times compared to native printed threads. In this comprehensive guide, you'll learn everything you need to know about using heat-set inserts to create reliable, reusable assemblies in nylon parts.

Quick Answer: What You Need to Know Right Now

Key Takeaways: Threaded Inserts for 3D Printing

What they are: Brass knurled bushings melted into printed holes to create metal threads

Why you need them: Printed threads strip after 1-3 cycles; inserts survive 50+ cycles

Core benefit: 10-15x stronger pull-out resistance compared to printed threads alone

Best material pairing: Brass inserts + FDM nylon = industrial-grade strength for functional parts

Critical design rule: Hole diameter = insert OD minus 0.1-0.15mm (adjusted for your printer's compensation)

Installation method: Soldering iron at 230-260°C for nylon materials with gentle pressure

Cycle life: Expect 50-100+ assembly/disassembly cycles with proper installation

Pull-out force: M3 inserts deliver 200-400N vs. 20-40N for printed threads

Now that you understand the basics, let's dive deeper into the specifics. Whether you're designing parts for rapid prototyping, automotive applications, or electronics manufacturing, mastering threaded inserts will dramatically improve your 3D printed parts assembly strength. The following sections will walk you through why printed threads fail, how to design perfect holes for inserts, the correct installation process, and how to troubleshoot common problems.

Table of Contents

1. Why Do Printed Threads Fail and How Do Heat-Set Inserts Solve This Problem?

2. How Do You Design Holes and Bosses for Maximum Insert Strength?

3. What Is the Correct Installation Process to Avoid Cracking and Misalignment?

4. How Do You Troubleshoot Problems and Maximize Insert Lifespan?

Why Do Printed Threads Fail and How Do Heat-Set Inserts Solve This Problem?

Understanding the Core Problem

Anyone who has worked with 3D printing strong threads knows the disappointment of watching a carefully designed part fail during its first real assembly. The fundamental problem lies in how FDM printing creates parts layer by layer. When you print internal threads, each thread ridge consists of thin layers of plastic stacked on top of each other. These layers have limited shear area between them, creating natural weak points throughout the threaded structure.

Material creep compounds this problem significantly. When you tighten a screw into nylon, the sustained torque causes the plastic to slowly deform over time. Additionally, print defects like under-extrusion or inconsistent layer adhesion become critical failure points under load. Consequently, a thread that looks perfect might have microscopic weaknesses that cause it to fail unpredictably.

Performance Comparison: Inserts vs. Printed Threads

When comparing traditional printed threads to heat set inserts for 3D printed parts, the performance difference is dramatic. Printed threads typically survive only 1-5 assembly cycles before stripping, while properly installed inserts handle 50-100+ cycles without degradation. The strength increase is equally impressive, with inserts providing 10-15 times better pull-out resistance. Moreover, the cost difference is negligible—spending $0.10-0.50 per insert is far more economical than reprinting failed parts, especially for 3D printing production runs.

How Heat-Set Inserts Work

Brass threaded inserts for nylon are specially designed bushings with knurled outer surfaces and precision-machined internal threads. The knurling on the insert's exterior surface is key to its performance. When you heat the insert and press it into a slightly undersized hole, the softened nylon flows into the diamond-shaped knurl pattern. As the plastic cools, it solidifies around these mechanical interlocks, creating a bond that's far stronger than friction alone.

The metal threads inside the insert distribute the screw's load over a much larger surface area compared to printed threads. Therefore, instead of stress concentrating on thin plastic ridges, the force spreads throughout the entire brass insert and then transfers to the surrounding nylon through the large knurled interface. The performance difference is measurable: a printed M3 thread might withstand 20-40 newtons of pull-out force before failing, while the same size insert in a properly designed boss can handle 200-400 newtons.

Why Brass and Nylon Work Together

This material pairing represents an ideal combination for several technical reasons. First, nylon's high heat resistance allows controlled installation without the material breaking down. Second, nylon exhibits excellent flow characteristics when heated, flowing smoothly into the insert's knurling without requiring excessive pressure. Third, the chemical compatibility between brass and nylon prevents galvanic corrosion. Finally, brass transfers heat efficiently during installation, ensuring the plastic around the insert reaches the proper temperature quickly and uniformly.

How Do You Design Holes and Bosses for Maximum Insert Strength?

The Essential Design Formula

Proper design is absolutely critical—the difference between a hole that's 0.1mm too large or too small can mean the difference between an insert that lasts for 100 cycles and one that spins after 10. Understanding heat set inserts design guidelines and applying the heat set insert hole compensation formula correctly forms the foundation of successful insert integration.

The basic hole size for heat set inserts follows a simple compensation formula: Hole diameter = Insert OD - (0.1 to 0.15mm). For example, if you're using an M3 insert with an outer diameter of 4.6mm, you would design your CAD hole at 4.45-4.50mm. This undersizing ensures the printed hole, which typically comes out slightly larger than designed, matches the manufacturer's recommended pilot hole diameter.

Hole Diameter Reference Chart:

Wall Thickness and Structural Requirements

Wall thickness rules are equally important for how to reinforce threads in 3D prints. The minimum wall thickness around the insert should be at least 2 times the insert's outer diameter. This means an M3 insert needs at least 9.2mm of material around it to prevent cracking during installation and pull-out under load. Additionally, you need 5 or more solid layers below the insert depth to provide adequate support.

Thin walls around inserts create several problems simultaneously. During installation, the heat and pressure can cause the wall to crack outward. Under load, thin walls flex too much, which allows the insert to wobble and eventually loosen. The 2x outer diameter rule provides adequate material to resist both installation stress and operational loads.

Print Orientation for Threaded Inserts for FDM Nylon

Layer orientation relative to the insert dramatically impacts strength. Vertical printing, where layers stack perpendicular to the insert's axis, aligns the layers with the pull-out force direction. This orientation provides maximum resistance because the screw must delaminate many layers to pull free. In contrast, horizontal printing places layers parallel to the pull-out direction, which means the screw only needs to overcome the relatively weak layer-to-layer adhesion.

For functional parts where strength matters most, always orient the part so inserts install vertically. When working with 3D printing plastics like nylon, this decision significantly impacts long-term reliability.

Critical Print Settings

Standard print settings optimize for speed and material efficiency, but inserts require localized reinforcement. In the region around each insert, increase your perimeter count to 4-6 walls instead of the typical 2-3. Bottom layers deserve special attention—increase your bottom solid layers to at least 5, preferably 6 or 7 for high-load applications.

Infill percentage directly correlates with insert strength. Use your slicer's modifier mesh or region settings to create a high-infill zone around each insert. A 40-50% infill within a 5mm radius of each insert provides excellent support, while the rest of the part can use standard 15-20% infill for efficiency.

What Is the Correct Installation Process to Avoid Cracking and Misalignment?

Quick Installation Guide

The fundamental process is straightforward: Heat your soldering iron to 240-250°C for nylon parts, position the insert perpendicular to the hole surface, apply gentle pressure for 2-3 seconds, stop when the insert sits flush with the surface, then allow 10 seconds of cooling before handling. This simple sequence, when executed carefully, produces reliable results.

Critical warning: Never attempt to cold-press or hammer inserts into 3D printed parts. The localized stress will create micro-cracks that propagate under load and cause premature failure. Heat is essential for allowing the plastic to flow around the insert's knurling.

Tool Setup and Temperature Control

Temperature control separates successful installations from frustrating failures. A basic soldering iron with adjustable temperature costs $30-50 and works perfectly well. The temperature sweet spot for nylon typically falls between 230-260°C. Nylon 12 generally prefers 235-245°C, while glass-filled nylon needs 250-265°C.

Why does temperature matter? Too cold, and the nylon won't soften enough to flow into the knurling—you'll create stress and cracks. Too hot, and the plastic breaks down chemically, creating burnt areas and voids that weaken the bond. Finding the right temperature means insertion happens smoothly with gentle pressure.

Step-by-Step Installation

Preparation - Remove any stringing or support material from holes. Verify parts have cooled to room temperature.

Heating - Allow your soldering iron to reach stable temperature (2-5 minutes).

Positioning - Place the insert squarely on the hole opening, ensuring perpendicular alignment.

Insertion - Touch the hot tip to the insert top and apply steady, gentle pressure. The insert should sink within 1-2 seconds as plastic softens. Ideal insertion feels like pushing through thick honey.

Dwell - Hold position for 2-3 seconds without adding pressure, allowing heat to equalize.

Completion - Remove the iron smoothly. The insert should remain stationary and perpendicular.

Cooling - Leave undisturbed for 10-15 seconds before handling.

Recognizing Good vs. Bad Installations

A good installation shows a clean, even fillet of plastic around the insert's top edge. The insert sits perpendicular with no visible tilt or cracks. Bad installations reveal tilted inserts, visible cracks radiating outward, burned plastic, or inserts sunken below the intended surface level.

After cooling, try to rotate the insert with your fingers. It should be completely immobile. If you can rotate it even slightly, the bond has failed and you should remove and reinstall with adjusted parameters.

How Do You Troubleshoot Problems and Maximize Insert Lifespan?

Performance Expectations

Well-installed inserts in properly designed nylon parts reliably survive 50-100 assembly cycles. An M3 insert in a well-designed boss withstands 200-400 newtons of axial tension before failure—compare this to 20-40 newtons for printed threads. These numbers assume proper wall thickness and adequate solid layers.

Common Problems and Solutions

Insert Spins in Hole

Causes: Hole too large, insufficient heating, poor knurling

Solutions: Reduce CAD hole by 0.05mm, increase temperature 10°C, verify insert quality

Prevention: Print calibration test bosses before production

Part Cracks During Installation

Causes: Walls too thin, cold pressing, print defects

Solutions: Increase wall to 2.5x insert OD, always use heat, improve print quality

Prevention: Design conservative wall thickness, inspect prints before installation

Insert Sinks Too Deep

Causes: Excessive pressure, insufficient bottom layers

Solutions: Add counterbore depth stop, use lighter pressure, increase solid layers to 6+

Prevention: Design mechanical depth stops into CAD

Insert Pulls Out Under Load

Causes: Insufficient solid material below, low infill, delamination

Solutions: Increase bottom layers to 7+, use 50%+ infill in boss region

Prevention: Design 1.5x insert depth of solid material below insert

Maximizing Lifespan

Drone frames typically see 30-50 assembly cycles—well within insert capability. Electronic enclosures might only open 10-20 times for maintenance. Manufacturing jigs might cycle hundreds of times, pushing the limits of insert performance.

Environmental factors affect performance significantly. Heat above 80-100°C causes nylon to soften. Vibration accelerates loosening. Chemical exposure to strong acids or bases degrades nylon. UV radiation from sunlight makes nylon brittle over time. Design with these factors in mind for your specific application.

When to Upgrade

If M3 inserts don't provide adequate strength, moving to M4 or M5 significantly increases capability. Flanged inserts work exceptionally well for thin-walled parts or high pull-out loads. For permanent installations, consider using adhesive in addition to heat-setting. When transitioning to injection molding production, molded-in threaded studs eliminate installation labor entirely.

Conclusion

Threaded inserts transform weak 3D printed assemblies into reliable, reusable hardware that rivals injection-molded parts. Success depends on three factors: designing holes 0.1-0.15mm smaller than insert OD with adequate wall thickness, installing at the correct temperature (240-250°C for nylon) with controlled pressure, and choosing print settings that create dense material around the insert. Master these fundamentals and your parts will survive 50+ assembly cycles instead of failing after the first tightening.
