Why Does Your 40Cr or 42CrMo Transmission Shaft Keep Bowing After Machining?

Why Does Your 40Cr or 42CrMo Transmission Shaft Keep Bowing After Machining?

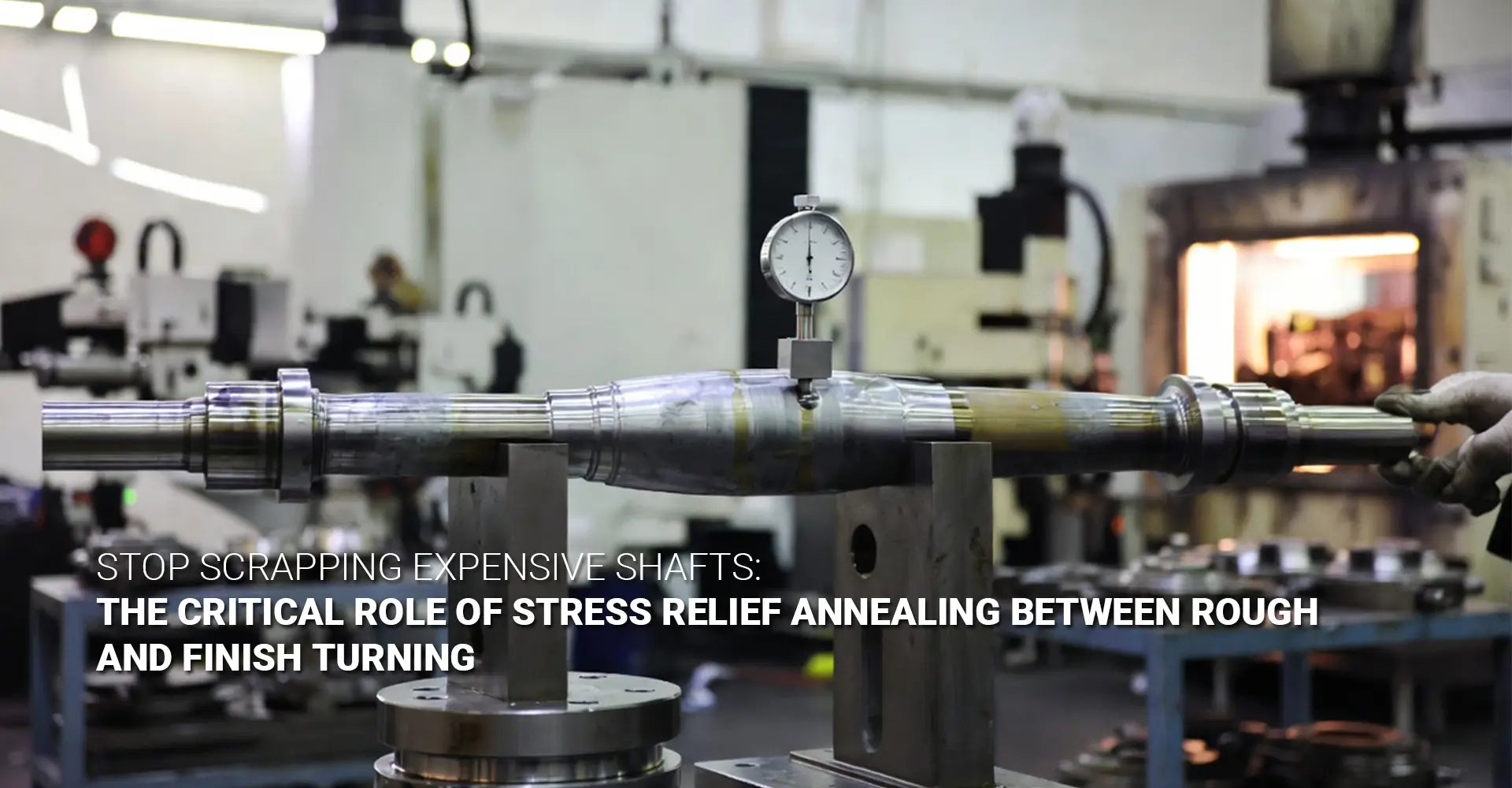

You placed the order. The supplier sent photos. The shaft looked straight. Then it arrived bowed — or worse, it bowed after installation. If this sounds familiar, you are not alone. Long transmission shafts made from 40Cr and 42CrMo alloy steel bow more often than most procurement managers expect. And in most cases, the cause is the same: a skipped step that costs almost nothing to add but everything to leave out.

This article explains exactly why shaft bowing happens, which material controls it better, and what process steps your supplier must follow to deliver a shaft that stays straight.

The short answer: A shaft bows after machining because heat treatment introduces thermal distortion, and straightening adds new residual stress. Without stress relief annealing (200°C for 2 hours) between straightening and finish turning, that stress releases during or after finish machining — causing the shaft to bow again. The proven fix is the four-step method:

Rough turn → Heat treat → Straighten → Stress relief anneal → Finish turn

Each step serves a specific role. Skip one — especially stress relief — and the shaft will not stay straight. A qualified custom CNC turning service never skips this step.

Before diving into the process, it helps to understand why distortion enters in the first place — and where it hides inside the steel.

Table of Contents

1. Why Does a 40Cr or 42CrMo Shaft Bow After Heat Treatment?
2. What Makes 42CrMo a Better Choice Than 40Cr for Heavy-Duty Shaft Machining?
3. How Does the Four-Step Method Control Shaft Bowing?
4. How Can a Procurement Manager Verify That a Supplier Performs the Stress Relief Step?
5. Conclusion

Why Does a 40Cr or 42CrMo Shaft Bow After Heat Treatment?

Many procurement managers assume that a shaft bows because the supplier machined it carelessly. In reality, bowing is a physics problem — not a skill problem. Heat treatment distortion control is one of the most demanding challenges in 40Cr shaft machining, and it starts long before the finish turning begins.

The short answer: Rapid quenching during heat treatment creates thermal gradients and phase changes inside the steel. These generate powerful internal stresses. A shaft that was perfectly straight after rough turning can bow by 0.5 mm or more after quenching — even when the supplier did everything else correctly.

To understand why this happens, consider what quenching actually does to a steel shaft. The outer surface cools first and contracts rapidly. The core stays hot longer and cools more slowly. This temperature difference creates a stress gradient across the cross-section. At the same time, the steel's crystal structure shifts from austenite to martensite — a phase change that expands volume unevenly. Together, these two effects pull the shaft out of straightness.

Long, slender shafts with a length-to-diameter ratio (L/D) greater than 10:1 are especially vulnerable. A short, stubby shaft can resist the bending force. A long shaft cannot. The bowing force wins every time.

There is also a factor that many suppliers fail to mention: rough turning stress release does not start at quenching. 40Cr and 42CrMo bar stock already carries residual stress from hot rolling and forging before any machining begins. Rough turning removes outer layers and shifts the stress balance inside the bar. So by the time a shaft enters the heat treatment furnace, it already carries a non-uniform stress distribution — and quenching amplifies it.

This is why straightening after heat treatment is always necessary. But straightening alone is not the solution. It is only the beginning of the next problem.

What Makes 42CrMo a Better Choice Than 40Cr for Heavy-Duty Shaft Machining?

Material selection is a procurement decision. But it has direct consequences for shaft straightness, process control, and long-term reliability. For precision transmission shafts with tight runout tolerances, the choice between 40Cr and 42CrMo matters more than most buyers realise.

The short answer: 42CrMo offers lower internal stress and less machining distortion tendency than 40Cr. The addition of molybdenum (Mo) improves hardenability, stabilises the microstructure during quenching, and reduces temper embrittlement risk. For large 42CrMo transmission shaft applications, this translates directly into less bowing after heat treatment and more predictable straightening behaviour.

Here is a side-by-side comparison of what matters most for shaft straightness:

The difference becomes critical when runout tolerances are tight. For shafts requiring runout below 0.05 mm after finish turning, 42CrMo is often the only material that gives the process enough margin to succeed. The quenching response is more uniform. The stress distribution after heat treatment is more symmetric. And the shaft responds more predictably to straightening.

For heavy-duty shaft manufacturing in sectors such as automotive drivetrains, the slightly higher material cost of 42CrMo is negligible compared to the cost of scrapping a bowed finished shaft. The real question is not whether 42CrMo costs more. The question is whether you can afford the distortion risk that comes with 40Cr on a precision shaft.

How Does the Four-Step Rough Turn–Heat Treat–Straighten–Finish Turn Method Control Shaft Bowing?

Every qualified supplier producing precision long shafts follows a structured process. The four-step method is not a preference — it is the only reliable sequence for shaft bowing prevention in alloy steel transmission shafts. Each step has a specific job. Each builds on the one before it.

The short answer: The four-step method works by addressing stress at each stage before it can cause permanent distortion in the finished shaft. Here is what each step does:

• Step 1 — Rough turn: Remove the bulk of the material. Leave 1–2 mm of finish allowance on all diameters. This releases some of the stress already present in the bar stock.
• Step 2 — Heat treat (quench + temper): Achieve the target hardness (typically HRC 35–45 for 40Cr and 42CrMo). Accept that some bowing will occur. This is expected and planned for.
• Step 3 — Straighten: Bring the shaft back to within finish-turning allowance. Mechanical or thermal straightening methods may be used. Note: straightening introduces new residual stress into the shaft.
• Step 4 — Stress relief anneal (200°C for 2 hours): Relax the residual stress introduced by straightening — before finish turning begins. This is the step most often skipped. It is also the most critical.

Here is why the sequence matters so much. When a supplier straightens a shaft and goes directly to finish turning without a low-temperature stress relief cycle, the finish turning process removes material and changes the stress balance again. The residual stress from straightening — still locked inside the shaft — now has room to release. The shaft bows. Sometimes it bows on the machine. Sometimes it bows overnight. Sometimes it passes inspection at the supplier's shop and bows in transit or after installation.

This is the "one-day-later" bowing failure mode. The shaft was never truly stable. It just had not had a chance to move yet.

This 200°C low-temperature anneal solves this by allowing the stress to release in a controlled way — inside an oven, not on a finished shaft. The low temperature does not affect hardness or strength. For 40Cr and 42CrMo shafts hardened to HRC 35–45, the tempering temperature is 500–600°C. A 200°C treatment is well below that threshold. It only relaxes the straightening stress. Think of it as a reset before the precision work begins.

This is the foundation of secondary turning accuracy — the ability to hold tight tolerances during finish turning because the shaft going onto the lathe is genuinely stress-free and dimensionally stable.

Achieving this level of process control requires both CNC machining capability and integrated heat treatment management. Suppliers who outsource heat treatment without coordinating the stress relief step are the ones most likely to deliver bowed shafts. For complex shaft geometries that also require milled features, custom CNC milling services must also be sequenced correctly around the stress relief cycle.

The shaft straightening process is therefore not a single event. It is a paired operation: straighten, then anneal. Neither step is complete without the other.

How Can a Procurement Manager Verify That a Supplier Performs the Stress Relief Step?

This low-temperature anneal is cheap to perform and expensive to skip. It typically adds 5–10% to the total machining cost of a high-value shaft. Compare that to the cost of scrapping a finished shaft — or managing a field failure. But the bigger challenge for procurement managers is not the cost. It is verification. You cannot see residual stress. You can only see the shaft bow — and by then, it is too late.

The short answer: Ask three specific questions during your supplier audit. A qualified supplier who performs proper residual stress elimination will answer all three correctly — and produce records to prove it.

The three audit questions:

Question 1: "What is your standard stress relief temperature and time for 42CrMo shafts after straightening?" → Correct answer: 200°C for 2 hours. Any answer that doesn't specify temperature and time is a red flag.

Question 2: "Do you perform stress relief before finish turning, or after?" → Correct answer: Before finish turning. After is too late — the stress has already been released into the finished geometry.

Question 3: "Can you show me furnace temperature logs and cycle records for the last batch of similar shafts?" → A qualified supplier produces records immediately. A supplier who hesitates or cannot find records is a risk.

Also check whether the supplier has a low-temperature oven on the shop floor. Not all "heat treatment" shops have stress relief capability. Some suppliers send shafts out for quench and temper — but skip the 200°C stress relief step entirely because they have no oven rated for that cycle. If the oven isn't there, the step isn't happening.

What to include on your purchase order:

When sourcing alloy steel transmission shafts with L/D ratios above 10:1 or runout tolerances below 0.05 mm, specify the following process sequence explicitly:

Rough turning → Quench + temper (to specified hardness) → Straightening → Low-temp anneal (200°C / 2 hr) → Finish turning → Final grinding (if required)

Include the stress relief step as a hold point — meaning the supplier must document completion before proceeding to finish turning. Ask for furnace records as part of the shipment documentation.

The supplier you select for precision surface finishing and shaft turning should be able to confirm this sequence without hesitation. If they push back on the stress relief requirement to save cost, that is a signal — not a negotiation.

Surface finish requirements on precision shaft journals also depend on this process being correct. A shaft that bows during finish turning will not hold its surface finish specification, regardless of how well the grinding is performed afterward.

Conclusion

Shaft bowing is not bad luck. It is the predictable result of skipping a step that costs almost nothing — and controls everything.

Here is what to remember:

• Heat treatment always introduces distortion. This is physics, not poor workmanship. Plan for it.
• Straightening fixes the bow but adds new residual stress. That stress must be removed before finish turning begins.
• A 200°C / 2-hour low-temperature anneal is the only reliable way to stabilise a straightened shaft before precision machining.
• 42CrMo offers better distortion control than 40Cr for large, precision shafts with tight runout requirements.
• The four-step method — rough turn, heat treat, straighten, stress relief anneal, finish turn — is the process specification that belongs on your purchase order.
• Verify with records. Ask for furnace temperature logs. A qualified supplier produces them without hesitation.

Skipping the 200°C stress relief step to save a few hundred dollars on a high-value shaft is false economy. The step costs little. The failure costs everything.

Specify it. Verify it. Hold your supplier to it.
