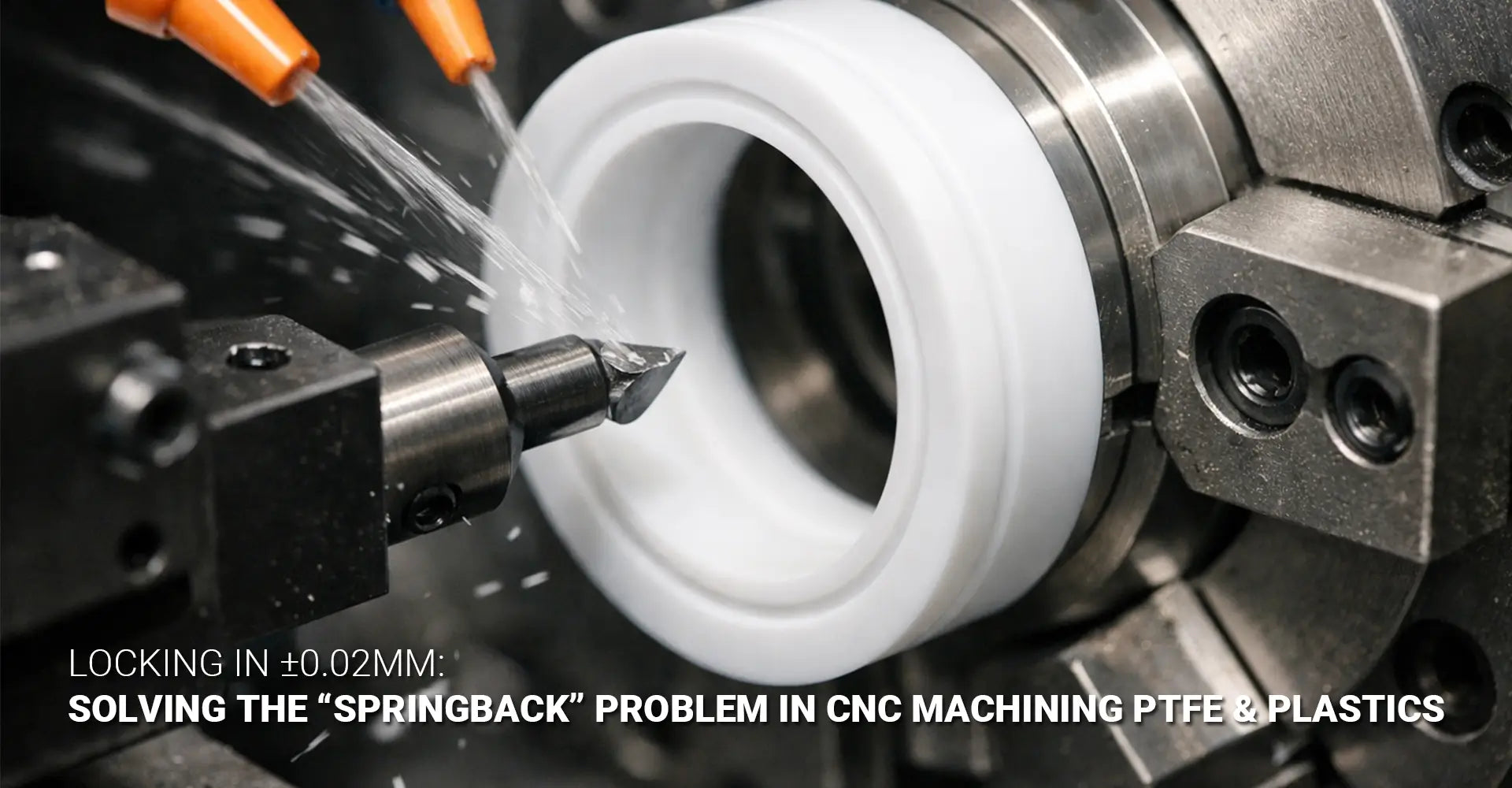

How Do You Achieve ±0.02mm Accuracy When Machining PTFE and Teflon Parts?

How Do You Achieve ±0.02mm Accuracy When Machining PTFE and Teflon Parts?

Precision machining PTFE sealing components presents unique challenges that many machinists encounter daily. When you remove a freshly machined Teflon part from your CNC lathe, it measures perfectly within tolerance. However, after a few hours, the same part suddenly falls outside specifications. This frustrating scenario isn't caused by machine error or poor craftsmanship—it's the result of thermal expansion and contraction that occurs during and after the cutting process.

Quick Answer: 3 Critical Steps to Precision PTFE Machining

The Solution at a Glance:

• Understand the physics: PTFE expands when heated during cutting, then contracts when cooling—this is solving part springback at its core
• Compensate proactively: Program intentional oversize dimensions (typically 0.05mm+ on 25mm diameter parts) into your CNC code
• Stabilize before inspection: Allow 2-4 hours rest time after machining before final measurement to ensure dimensional stability plastics

The Real Problem: Your part isn't "springing back"—it's contracting from thermal expansion during the cut. Understanding this distinction transforms how you approach CNC turning plastics for critical sealing applications.

Moreover, achieving consistent results requires a systematic approach that addresses material behavior, tooling selection, and programming techniques. This comprehensive PTFE machining guide will walk you through each step of the process, from understanding why dimensional changes occur to implementing proven compensation strategies that deliver repeatable accuracy.

Table of Contents

1. What Causes Dimensional Changes When Machining PTFE Sealing Components?
2. How Does PTFE Compare to Other Plastics for Precision Machining?
3. Which Tooling and Coolant Strategies Minimize Heat in PTFE Turning?
4. How Do You Program CNC Compensation for PTFE Thermal Contraction?
5. Why Is Tool Nose Radius Compensation Critical for PTFE Seal Geometries?
6. What Post-Machining Steps Ensure Dimensional Stability in PTFE Parts?

What Causes Dimensional Changes When Machining PTFE Sealing Components?

The confusion between "springback" and thermal expansion creates many headaches for machinists working with non-metallic part accuracy requirements. When you machine metals, elastic springback occurs as internal stresses release after cutting. However, plastics behave differently, and understanding this distinction is crucial for achieving tight tolerances.

The Two-Stage Dimensional Change Process:

• Heat generated during cutting causes PTFE to expand temporarily by 0.001-0.002mm per mm of diameter
• Coefficient of thermal expansion for PTFE measures 10-20× higher than steel (approximately 100-200 × 10⁻⁶/°C)
• Parts measure "correct" on the hot machine table, then become undersized after cooling to room temperature
• The contraction continues gradually for several hours after machining stops

During the cutting process, friction between the tool and workpiece generates significant heat. Consequently, even a well-sharpened cutting tool creates enough thermal energy to raise the local temperature of PTFE by 15-30°C above ambient conditions. Since PTFE has an extremely high coefficient of thermal expansion, this temperature increase causes measurable growth in all dimensions.

Furthermore, the heat doesn't distribute evenly throughout the part. Areas near the cutting zone experience higher temperatures than sections farther away or those in contact with the chuck. This creates a temperature gradient that results in non-uniform expansion during machining. When the part cools to room temperature over the next few hours, it contracts back to its stable dimensions—which are smaller than what you measured immediately after cutting.

The magnitude of this thermal expansion machining effect depends on several factors. Larger parts retain more heat and therefore experience greater dimensional changes. Additionally, aggressive cutting parameters generate more heat than light finishing passes. The material's initial temperature also plays a role, as stock that has been sitting in a cold shop will expand more dramatically when heated than material already at room temperature.

Understanding this two-stage error mechanism allows you to develop effective compensation strategies. Instead of chasing phantom "springback" issues, you can calculate the expected thermal contraction and program your CNC accordingly to produce parts that measure correctly after stabilization.

How Does PTFE Compare to Other Plastics for Precision Machining?

Positioning PTFE within the spectrum of engineered plastics helps you understand its unique machining characteristics. While many thermoplastics are used for machining plastic precision parts, each material presents different challenges related to dimensional stability.

PTFE vs. Other Plastics - Quick Comparison:

• PTFE (Teflon): Softest material, highest thermal expansion (100-200 × 10⁻⁶/°C), exceptional chemical resistance, low friction
• PEEK: Considerably stiffer, better dimensional stability (47 × 10⁻⁶/°C), tolerates higher temperatures, more expensive
• Nylon (PA): Moderate properties, significant moisture absorption issues that affect dimensions, good impact resistance
• Acetal (POM): Excellent machinability, lower cost, thermal expansion around 80 × 10⁻⁶/°C, limited chemical resistance

PTFE's unique combination of extreme softness (Shore D hardness 50-60) and exceptionally high expansion coefficient creates particular challenges for tight tolerances. While metals typically have thermal expansion coefficients of 10-20 × 10⁻⁶/°C, PTFE expands five to ten times more per degree of temperature change. This dramatic difference means that a temperature rise of just 20°C during machining can cause a 25mm diameter part to grow by 0.04-0.10mm.

In contrast, PEEK offers much better dimensional stability due to its lower expansion coefficient and higher stiffness. However, PEEK requires different cutting parameters and can be significantly more challenging to machine because of its higher strength. The material also costs three to five times more than PTFE, making it less attractive for applications where chemical resistance and low friction are the primary requirements.

Nylon presents a different challenge altogether. Though it machines reasonably well and has moderate thermal expansion, it absorbs moisture from the atmosphere. A nylon part can grow by 0.5-2% as it equilibrates with ambient humidity levels. Therefore, tight-tolerance nylon components must be machined in a controlled humidity environment and stored properly.

Acetal delivers the best machinability among engineering plastics and maintains dimensions better than PTFE. Nevertheless, its chemical resistance is limited, making it unsuitable for many sealing applications where PTFE excels. Additionally, acetal's melting point is lower, so it cannot withstand the elevated temperatures common in industrial machinery applications.

The material selection decision ultimately depends on your application requirements. When chemical resistance, low friction, and high temperature capability are essential—such as in pump seals, valve seats, and automotive fuel system components—PTFE remains the material of choice despite its machining challenges.

Which Tooling and Coolant Strategies Minimize Heat in PTFE Turning?

Taking a preventive approach to heat management reduces the magnitude of thermal expansion you must compensate for later. Rather than simply accepting heat generation as inevitable, skilled machinists employ specific strategies to minimize temperature rise during the cutting process.

Best Practices for Low-Heat PTFE Machining:

• Use razor-sharp carbide tools with fresh edges to reduce cutting forces and friction
• Select high positive rake angles (15-20°) that shear material cleanly rather than plowing through it
• Apply compressed air blast instead of liquid coolant to avoid absorption issues
• Take light finishing passes (0.05-0.1mm depth of cut) that remove minimal material
• Maintain high cutting speeds (150-250 m/min) with low feed rates (0.05-0.15 mm/rev)

Sharp tools are absolutely critical when machining Teflon parts. A dull cutting edge doesn't slice through the soft material cleanly; instead, it pushes and deforms the plastic, generating excessive heat through friction. Carbide inserts should be replaced at the first sign of edge wear. Some machinists even use diamond-coated tools for the highest quality sealing surface machining applications.

Tool geometry plays an equally important role. High positive rake angles (15-20°) create a shearing action that produces thin, continuous chips with minimal heat generation. In contrast, neutral or negative rake angles force the tool to plow through the material, creating heat and potentially causing dimensional distortions. The relief angles should also be generous (10-15°) to prevent rubbing between the tool flank and the machined surface.

The coolant debate in PTFE machining is particularly interesting. Traditional flood coolant, which works well for metals, causes problems with PTFE because the material can absorb liquid coolants. This absorption leads to dimensional changes after machining and potential contamination of the part. Therefore, most experienced machinists prefer compressed air blast cooling.

Air blast cooling offers several advantages. Firstly, it effectively clears chips from the cutting zone without risk of absorption. Secondly, it provides moderate cooling without the mess and disposal issues associated with liquid coolants. Thirdly, the dry cutting environment makes it easier to see the surface finish as you machine. However, air cooling is less effective than liquid coolant, so you must use sharp tools and appropriate cutting parameters.

For particularly demanding applications, some shops use a combination approach. They employ air blast for roughing operations, then take a final finishing pass with an ultra-sharp tool in completely dry conditions. This final pass removes only 0.02-0.05mm of material and generates negligible heat because the sharp tool slices through so cleanly.

Cutting parameters must be carefully balanced. High cutting speeds reduce the time that heat can conduct into the workpiece, keeping more thermal energy in the chip that is carried away. Nevertheless, speeds that are too high can cause surface melting in PTFE. Similarly, low feed rates reduce cutting forces and heat generation but increase cycle time. Most machinists find that speeds of 150-250 m/min combined with feeds of 0.05-0.15 mm/rev deliver the best balance for precision work.

How Do You Program CNC Compensation for PTFE Thermal Contraction?

Implementing intentional "wrong" programming allows you to achieve correct final dimensions after thermal stabilization. This counterintuitive approach requires systematic testing and careful documentation, but it delivers consistent results once properly established.

Step-by-Step Compensation Method:

1. Machine a test piece using nominal CAD dimensions without any compensation
2. Measure critical features immediately after machining while the part is still warm
3. Let the part stabilize for 2-4 hours in a controlled environment at 20°C ±2°C
4. Re-measure the same features and calculate the total contraction amount
5. Add compensation offset to your CNC program (typically 0.001-0.002mm per mm of diameter)
6. Verify the compensation with additional production samples and adjust if necessary

The compensation calculation is straightforward once you have test data. For example, if you machine a 25.00mm diameter, measure 25.01mm immediately after cutting (due to residual heat), and then measure 24.96mm after stabilization, your total contraction is 0.05mm. To achieve a final dimension of 25.00mm, you must program the CNC to cut 25.05mm.

Applying this compensation in your CNC program can be done in several ways. The most common method uses tool offset adjustments. In Fanuc controls, you would add +0.025mm to the X-axis tool offset (remembering that X is diameter on a lathe). This approach allows you to keep your program using nominal dimensions while the offset automatically applies the compensation.

Alternatively, you can modify the program geometry directly. Instead of programming X25.0, you would program X25.05. This method makes the compensation more visible in the program but requires updating multiple programs if the compensation factor changes. Additionally, it can cause confusion if someone unfamiliar with the process reviews the program.

Batch-to-batch variation is an important consideration. Different manufacturing lots of PTFE rod stock can have slightly different properties and moisture content, affecting their thermal expansion behavior. Therefore, it's wise to machine and verify a test piece at the start of each new material batch. Some shops maintain a compensation log that tracks the offset values for different materials and sizes.

The compensation factor also varies with part size. A 10mm diameter part will contract less in absolute terms than a 50mm diameter part, even though the percentage change remains similar. Consequently, you need to develop compensation factors for different size ranges. Many shops create a reference chart showing the typical offsets needed for various diameter ranges.

Temperature consistency in your shop environment matters significantly. If your shop temperature fluctuates between 15°C and 25°C throughout the day, your compensation factors become less reliable. Ideally, both machining and inspection should occur in a temperature-controlled area maintained at 20°C ±2°C.

Let's walk through a real example. You're machining a seal ring with a critical 25mm outer diameter that must be 25.00mm ±0.02mm. Your test piece shows 0.048mm contraction after stabilization. Therefore, you program X25.048 (or add +0.024mm to your X-axis tool offset). After machining production parts and allowing stabilization, measurements show 25.01mm—well within the ±0.02mm tolerance. Success!

Why Is Tool Nose Radius Compensation Critical for PTFE Seal Geometries?

Even perfectly compensated dimensions fail if the geometry profile itself is incorrect. This often-overlooked aspect of sealing surface machining can make the difference between a seal that performs reliably and one that leaks under pressure.

Tool Nose Radius Impact on Seal Surfaces:

• Programming the tool center path creates systematic geometry errors on tapers and radii
• G41/G42 compensation commands are essential for accurate profiles in any CNC programming
• Smaller nose radius tools (0.2-0.4mm) replicate finer details and sharper transitions
• Seal contact surfaces require special attention to both dimensional accuracy and surface finish (Ra 0.4-0.8μm typical)

Tool nose radius compensation (TNRC) addresses a fundamental geometric issue. When you program a taper or radius, the CNC needs to know whether those coordinates represent the desired part profile or the tool center path. Without TNRC, the machine assumes you're programming the tool center, which produces an incorrect profile because the actual cutting occurs at the tool nose, not the center.

The mathematics behind this becomes critical for sealing tapers. Consider a 30° taper machined with a 0.4mm nose radius tool. If you program the tool center path without compensation, the actual taper angle produced will be slightly different, and the taper will have a small radius at its apex instead of a sharp corner. For a seal that mates against a metal surface, this geometric error prevents proper contact and can cause leakage.

In Fanuc and similar CNC controls, you activate TNRC using G41 (left compensation) or G42 (right compensation) commands. The control then automatically calculates the offset path needed to place the tool nose, rather than the tool center, on the programmed profile. Deactivating compensation uses G40. These commands must be issued when the tool is in motion, typically during an approach move before the actual cut begins.

The nose radius value itself significantly affects achievable detail. A 0.8mm radius tool cannot reproduce sharp corners or tight radii accurately. For precision seal geometries with small radii (1-2mm) or sharp transitions, you need tools with 0.2-0.4mm nose radii. However, smaller radii are more fragile and may wear faster, requiring more frequent replacement.

Surface finish on the sealing surface directly affects seal performance. A rougher surface may leak, while an extremely smooth surface (Ra < 0.2μm) can actually make initial sealing difficult because insufficient surface texture exists to retain a lubricating film. For most PTFE seals, targeting Ra 0.4-0.8μm provides the best balance. This finish is achievable with sharp tools, proper speeds and feeds, and a light finishing pass.

Verification of seal geometry requires more than simple diameter measurements. A coordinate measuring machine (CMM) or optical comparator allows you to check the actual profile against the CAD model. For critical applications, checking the taper angle, radii, and transition zones ensures the seal will perform as designed. Some shops create physical gauge blocks representing the mating metal surface to verify fit.

Common mistakes include forgetting to activate G41/G42 before cutting a critical profile, using worn tools with unknown nose radii, or failing to update the tool nose radius value in the tool offset table after tool changes. Each of these errors produces parts that measure correctly in some dimensions but have incorrect geometry that only becomes apparent during assembly or testing.

What Post-Machining Steps Ensure Dimensional Stability in PTFE Parts?

Addressing the often-overlooked stabilization period between machining and inspection prevents costly mistakes and customer returns. Rushing this step undermines all the careful work you've done in tooling selection and program compensation.

Stabilization Protocol for Precision Plastic Parts:

• Remove parts from the machine and place them in a temperature-controlled area maintained at 20°C ±2°C
• Allow a minimum 2-4 hours rest time for small parts (under 50mm), overnight for larger components
• Avoid stacking parts during the stabilization period, as trapped heat between parts slows cooling
• Perform final inspection only after complete thermal equilibration to room temperature
• Document the stabilization time in your quality records for traceability

The stress relief mechanism during stabilization involves more than just temperature change. Machining introduces mechanical stresses into the plastic as the cutting tool deforms and removes material. Although these stresses are much smaller in soft PTFE than in stiffer plastics, they still exist and can cause minor dimensional changes as they relax over time.

Heat dissipation follows a predictable curve. A freshly machined part loses heat quickly during the first 30-60 minutes, then more slowly as it approaches equilibrium with the ambient environment. The rate of cooling depends on part mass, surface area, and air circulation. A thin-walled ring cools much faster than a solid cylinder of the same diameter.

Rushing to inspection creates multiple problems. If you measure parts before they've fully stabilized, you're essentially checking dimensions of a part that is still changing. This leads to inconsistent inspection results where the same part might pass or fail depending on when you measured it. Furthermore, parts shipped to customers before complete stabilization can arrive out of tolerance, leading to complaints and returns.

The controlled environment requirement deserves emphasis. If your inspection area is at 18°C while your machine shop is at 24°C, parts measured immediately after moving to inspection will still be contracting. Similarly, humidity changes can affect some plastics (though PTFE is relatively insensitive to moisture). Maintaining consistent temperature and humidity in both machining and inspection areas eliminates these variables.

Some high-volume operations implement a formal staging system. Parts come off the machine and go into designated stabilization racks, clearly labeled with the time machining completed. After the required stabilization period, they move to an inspection queue. This system prevents accidentally inspecting parts too early and provides clear documentation of process compliance.

For particularly critical applications, some manufacturers implement an extended stabilization protocol. Parts are allowed to rest for 24 hours, measured, then checked again after another 24 hours to verify complete dimensional stability. If the second measurement differs from the first by more than 0.005mm, the stabilization time is extended further. This ultra-conservative approach ensures absolute stability but significantly increases cycle time.

Temperature documentation can be valuable for quality records. Some shops use infrared thermometers to record part temperature immediately after machining, then again after stabilization. This data helps optimize stabilization times and provides evidence of proper process control for customers who audit your quality system.

The economic impact of proper stabilization is significant. Investing four hours of shelf time costs essentially nothing compared to the cost of scrapping out-of-tolerance parts or, worse, shipping defective parts to customers. Additionally, consistent stabilization times improve process capability, allowing you to hold tighter tolerances reliably.

Conclusion

Machining PTFE and other plastics to precision tolerances requires understanding three fundamental principles: thermal expansion physics, proactive compensation programming, and proper stabilization procedures. Unlike metals, plastics demand patience and systematic testing to develop reliable compensation factors that account for their unique material behavior.

The key to consistent results lies in treating dimensional stability as a process variable rather than just a material property. By implementing sharp tooling strategies, accurate tool nose radius compensation, and disciplined post-machining stabilization protocols, machinists can reliably achieve ±0.02mm accuracy on PTFE sealing components even with this challenging material.

Remember that each material batch may behave slightly differently due to variations in molecular weight, processing history, or moisture content. Therefore, continuous verification through test pieces and statistical process control ensures your compensation factors remain accurate across production runs. Documenting your processes, maintaining detailed records, and implementing formal stabilization protocols transforms PTFE precision machining from an art into a repeatable science.

The investment in proper techniques pays dividends through reduced scrap, fewer customer returns, and the ability to confidently quote tight-tolerance work that many competitors avoid. As sealing requirements become more demanding across industries—from chemical processing to automotive fuel systems—mastering precision PTFE machining provides a valuable competitive advantage.
