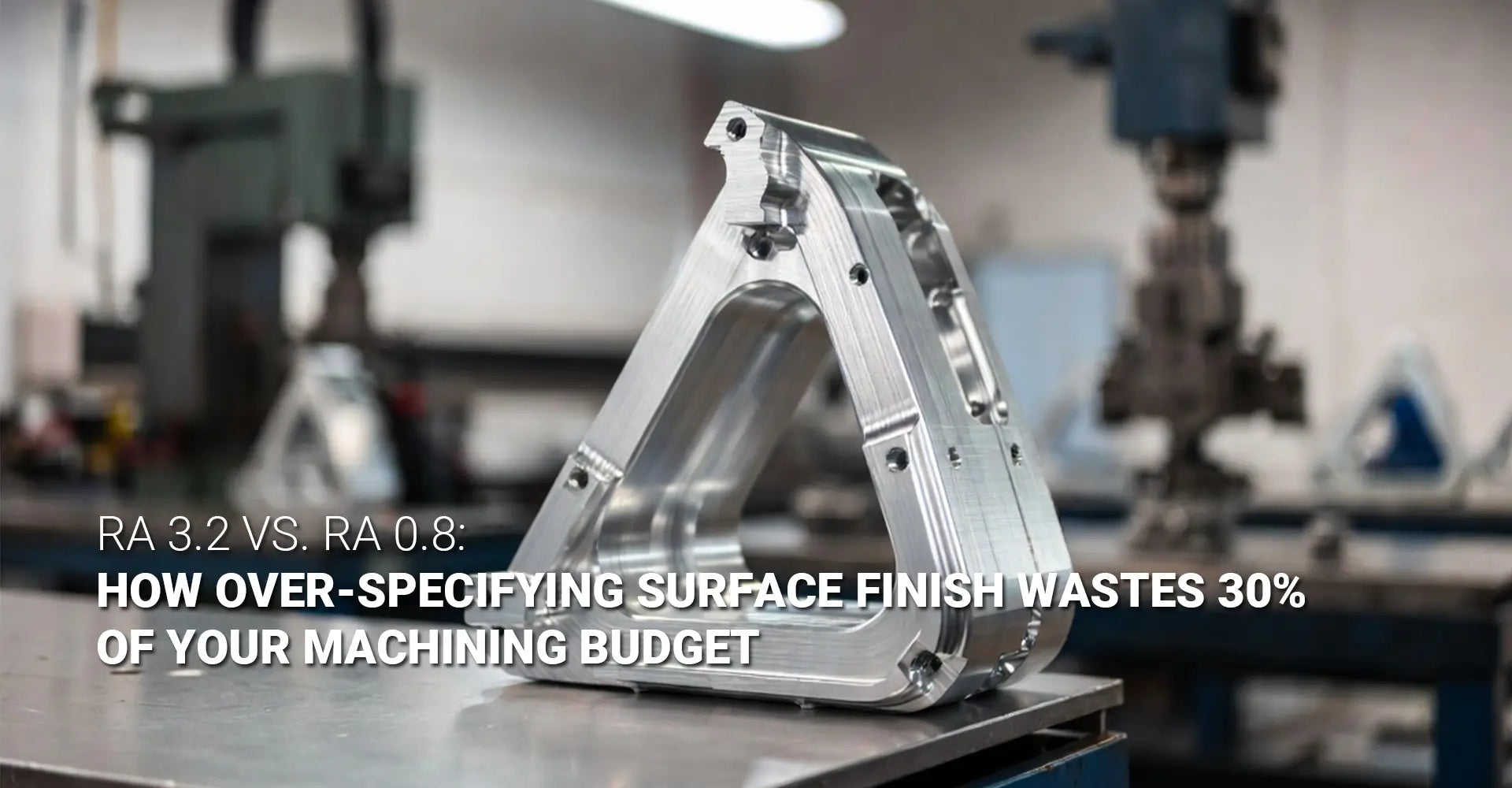

Looks the Same, Price 30% Higher: Are You Paying for Surface Finish You Don't Actually Need?

Looks the Same, Price 30% Higher: Are You Paying for Surface Finish You Don't Actually Need?

You just got a quote back. The price is higher than expected — again. But the part looks almost identical to the last batch. So what changed? In many cases, the answer is sitting right there on your drawing: a surface finish callout that nobody questioned.

Surface finish standards for machining are one of the most overlooked cost drivers in precision part procurement. And yet, most engineers and buyers never challenge them.

⚡ Quick Answer: What You Need to Know Right Now

If your part is structural, hidden, or non-sealing, Ra 3.2 is almost certainly good enough — and it's the cheapest finish you can specify.

Bottom line: Moving from Ra 3.2 to Ra 0.8 can double the price of your part. If there's no functional reason for that smoother finish — you're paying for nothing.

So where does all that extra money actually go? And how do you know if your current spec is costing you more than it should? That's exactly what this guide covers. By the end, you'll know how to read Ra values, understand the real cost impact, and write smarter finish specs that save money without sacrificing performance.

Table of Contents

1. The Mirror Finish Trap — Why Are So Many Buyers Overpaying for Surface Finish?
2. Ra 3.2, Ra 1.6, Ra 0.8, Ra 0.4 — What Do These Surface Roughness Numbers Actually Mean?
3. How Much Does Each Finish Level Actually Cost — And Where Does the Price Jump Hit Hardest?
4. Functional vs. Cosmetic Finish — Where Do You Actually Need a Smooth Surface?
5. How to Specify Surface Finish on Your Drawing Without Over-Specifying?
6. FAQ: Your Top Surface Finish Questions Answered
7. Conclusion

The Mirror Finish Trap — Why Are So Many Buyers Overpaying for Surface Finish?

Most procurement professionals focus on material grade, tolerances, and lead time. Surface finish often gets copied from a previous drawing — or defaulted to "Ra 0.8" because it "sounds professional." But that habit is expensive.

"The single biggest surface finish mistake engineers make is specifying Ra 0.8 on every surface because it looks better on the drawing."

This is what's known in machining shops as overpolishing — and it's far more common than most buyers realize. The cost doesn't show up as a line item labeled "unnecessary polishing." It's buried in your total part price.

Why Does This Keep Happening?

There are three common reasons:

• Engineers copy old specs. If a previous drawing used Ra 0.8, the next revision often keeps it — without questioning whether it's still needed.
• Vague notes force polishing. Notes like "smooth finish" or "no visible tool marks" are not Ra values. Machinists read them as a polishing requirement.
• Buyers don't know to push back. Without understanding what Ra values mean, procurement teams have no basis to challenge a spec — even when the price jumps 30%.

The result? Parts that cost significantly more than they should, with no functional benefit whatsoever. This is the core problem that a surface finish procurement guide is designed to solve: giving buyers and engineers the knowledge to make smarter decisions before the drawing is finalized.

Ra 3.2, Ra 1.6, Ra 0.8, Ra 0.4 — What Do These Surface Roughness Numbers Actually Mean?

Ra stands for Roughness Average. It measures the average height of microscopic peaks and valleys on a machined surface. The lower the Ra number, the smoother the surface — and the more work it takes to get there.

Here's the key insight: Ra values are not just finish grades. They are cost multipliers.

Breaking Down Each Ra Level

Ra 3.2 — Visible Tool Marks, Perfectly Functional for 90% of Applications

Ra 3.2 (125 μin) is the industry default for a reason. It's what most CNC milling operations produce as-machined — without any secondary finishing steps. You can see tool marks under bright light, but they don't affect performance for most industrial parts. If your part is a mounting bracket, housing, flange, or structural component, Ra 3.2 is almost certainly sufficient. This applies to a wide range of industries, including industrial machinery components where structural integrity matters far more than surface aesthetics.

Ra 1.6 — Smooth to Touch, Minimal Visible Marks

Ra 1.6 (63 μin) is achievable with optimized machining parameters on turning operations — sometimes without any additional polishing. It looks clean and feels smooth. This level suits light-duty sealing surfaces, general mating faces, and parts where some cosmetic quality is required without going full-mirror.

Ra 0.8 — Near-Mirror, Requires Secondary Operations

Ra 0.8 (32 μin) almost always requires manual polishing or a secondary grinding step. This is where cost starts to escalate significantly. Use this only for O-ring sealing faces, bearing journals, and sliding contact surfaces where the finish directly affects function.

Ra 0.4 — True Mirror, Significant Polishing Time

Ra 0.4 (16 μin) is a precision finish. It requires extended lapping, buffing, or grinding — and labor time grows fast. It's appropriate for optical surfaces, precision hydraulic seals, and fatigue-critical rotating components. For virtually everything else, it's unnecessary.

Understanding Ra value cost impact starts with understanding what each level actually requires from the shop floor — and why every step smoother costs exponentially more, not linearly.

How Much Does Each Finish Level Actually Cost — And Where Does the Price Jump Hit Hardest?

Here's what most buyers don't see: polishing is manual labor. And manual labor is billed by the hour.

A typical polishing rate at a precision machine shop runs $60–$100 per hour. That means even a small part can carry a significant polishing surcharge — and on volume orders, those surcharges add up fast.

The Cost Curve: What Each Step Down Actually Costs

Real Numbers: Where the Pain Is

Consider a small machined part priced at $10 at Ra 3.2. Here's what happens when the finish spec tightens:

• At Ra 1.6: ~$13–$15 per part
• At Ra 0.8: ~$20–$25 per part
• At Ra 0.4: ~$30–$40 per part

Now multiply that by 1,000 parts. A spec change from Ra 3.2 to Ra 0.8 adds $10,000–$15,000 to your order — for finish that may serve no functional purpose.

This is where machining cost per finish level thinking pays off. Before finalizing any drawing, ask: "What does each surface finish callout actually cost us — and what does it buy us?" If the answer to the second question is "nothing functional," the spec needs to change.

This cost dynamic applies across manufacturing processes. Whether you're ordering CNC machining services or die casting components, over-specifying surface finish adds cost at every stage.

Functional vs. Cosmetic Finish — Where Do You Actually Need a Smooth Surface?

This is the most important question in surface finish specification: Is this finish functional or cosmetic?

Functional finish directly affects part performance — sealing, wear resistance, fatigue life, or fit. Cosmetic finish affects appearance — how the part looks to a customer or end user. Both are legitimate. But they should never be confused.

Decision Framework: Where to Spend on Finish

✅ Functional Needs — Ra 1.6 or Smoother Is Justified

These surfaces directly affect how the part performs:

• Static O-ring seals (face and radial): Ra 1.6 is typically sufficient. Always check your O-ring manufacturer's specs.
• Dynamic seals (reciprocating or rotating): Ra 0.8 or better is often required.
• Bearing journals and rotating shafts: Ra 0.8 is common; Ra 0.4 for precision applications.
• Sliding or mating surfaces with tight clearance: Ra 1.6 to Ra 0.8 depending on fit tolerance.
• Fatigue-critical components: Smoother finish reduces stress concentration and improves fatigue life.

✅ Cosmetic Needs — Choose Based on Visual Standard

These surfaces affect appearance, not function:

• Consumer-facing or show surfaces: Ra 0.8 provides a "premium" smooth feel. Ra 0.4 for true mirror aesthetics.
• Automotive exterior components: Ra 0.8 is common for visible aluminum or steel parts. Automotive parts often balance cosmetic standards with functional requirements in the same drawing.

❌ No Upgrade Needed — Ra 3.2 Is Fine

These surfaces don't need anything better than as-machined:

• Hidden brackets and internal structural plates
• Non-sealing flanges and bolt faces
• Internal cavities and non-mating walls
• Back faces, bottom faces, and any surface never visible in assembly

The core principle of functional vs cosmetic finish thinking is simple: spend on smooth where it matters, save everywhere else.

Key Rule: One 10×10mm sealing face does not mean the entire 200×200mm flange needs polishing. Specify tighter finishes only on the faces that need them — not the whole part.

How to Specify Surface Finish on Your Drawing Without Over-Specifying?

Now that you know what each Ra level costs and where it's needed, the next step is writing specs that don't silently inflate your part price.

Surface finish specification best practices start with one simple rule: default to Ra 3.2. Call out tighter finishes only where a functional reason exists.

The "Except as Noted" Rule

Add this general note to your drawing:

"ALL SURFACES Ra 3.2 MAXIMUM UNLESS OTHERWISE NOTED — PER ASME B46.1"

Then use surface finish symbols (the standard checkmark symbol with Ra value) only on specific faces that require a tighter finish. This approach:

• Eliminates ambiguity for the machinist
• Prevents polishing of surfaces that don't need it
• Makes your drawings easier to quote accurately
• Signals to your supplier that you know what you're doing

What to Avoid

❌ "Smooth finish" — This is not an Ra value. It forces the machinist to interpret your intent, and they'll err toward polishing.

❌ "No visible tool marks" — This means Ra 0.8 or better on every face. You've just ordered a full polish.

❌ "Ra 0.8 ALL OVER" — Unless every single surface on your part serves a precision function, this is an automatic cost penalty.

❌ Copying finish specs from a previous part — Always review whether the previous spec was correct in the first place.

Write It Specifically

Good finish callout format:

• Ra 3.2 MAX, ALL SURFACES UNLESS NOTED — ASME B46.1
• Ra 1.6 MAX — THIS FACE ONLY (O-RING GROOVE)
• Ra 0.8 MAX — BEARING BORE ID

This level of specificity eliminates the guesswork. It reduces quoting errors. And it prevents the shop from polishing faces they don't need to polish.

This same discipline applies whether you're specifying finish on a machined aluminum housing or a die-cast component. The principle is the same: be specific, be functional, and don't pay for what you don't need. For a full overview of what's achievable across different processes, the surface finish options reference is a useful starting point before writing your first callout.

Your Polishing Cost Reduction Checklist

Use this before finalizing any drawing:

• [ ] Does the general note default to Ra 3.2 maximum?
• [ ] Are tighter finishes called out only on specific, named surfaces?
• [ ] Is there a functional reason for every finish tighter than Ra 3.2?
• [ ] Have vague notes like "smooth finish" or "no visible tool marks" been removed?
• [ ] Is the standard referenced (ASME B46.1 or ISO 1302)?
• [ ] Has the finish spec been reviewed against actual supplier capabilities?

FAQ: Your Top Surface Finish Questions Answered

Q: Looks the same, price 30% higher — is that really true?

Yes. In most industrial lighting conditions, the average person cannot see the difference between Ra 3.2 and Ra 0.8 without magnification. But the price difference is very real. Moving from Ra 3.2 to Ra 0.8 typically adds 100–150% to machining cost — because it requires manual polishing, which is billed at $60–$100/hour.

Q: What surface finish do I actually need for a typical industrial part?

For the vast majority of machined components — brackets, housings, non-sealing flanges, structural parts — Ra 3.2 is perfectly adequate. You only need Ra 1.6 or smoother for sealing surfaces, bearing journals, sliding fits, or fatigue-critical components. For everything else, Ra 3.2 is the right default.

Q: How much does polishing cost per part?

A small part (50×50×25mm) takes roughly 5–10 minutes to polish from Ra 3.2 to Ra 0.8, adding $5–$15 per part. A larger part (200×200mm) can take 30–60 minutes — adding $30–$60 per part. On a 1,000-part run, that's $10,000–$30,000 of avoidable cost.

Q: I need an O-ring sealing surface. What Ra should I specify?

For static O-ring face seals, Ra 1.6 is typically sufficient. For dynamic seals on reciprocating shafts, Ra 0.8 may be required. Always verify against your O-ring supplier's specifications. Many engineers default to Ra 0.4 for all seals — but that's often unnecessary and expensive for static applications.

Q: What's the difference between "as-machined" and "polished" finish?

"As-machined" is what comes off the CNC after standard toolpaths. Milling typically produces Ra 3.2; turning with sharp inserts can reach Ra 1.6. "Polished" means additional abrasive steps — sanding, buffing, or lapping — to remove tool marks and lower Ra. Polishing adds cost, time, and the risk of scratching or rounding critical edges. Specify as-machined whenever possible.

Q: What should I ask my machining supplier about surface finish?

Ask two things:

1. "What Ra does your standard machining process produce as a baseline?"
2. "What is the upcharge for achieving Ra X on specific faces I've called out?"

A supplier who can answer both questions clearly is a supplier who understands their own process. Also ask for sample parts at different Ra levels — a good shop will provide them.

Q: What is the single biggest takeaway for reducing machining costs through surface finish?

Specify the minimum finish that works — not the nicest finish you can imagine. Ra 3.2 works for roughly 90% of industrial parts. Ra 1.6 covers most of the remaining 8%. Ra 0.8 or smoother is genuinely necessary for fewer than 2% of applications. Every time you write Ra 0.8 on a drawing without a functional reason, you're adding 30–150% to the part cost for zero benefit. To avoid overpolishing, train every engineer to ask: "What is the functional reason for this finish?"

Conclusion

Surface finish is one of the few cost levers in precision machining that requires no new tooling, no material change, and no redesign. It just requires a smarter specification.

Here's what to take away:

• Ra 3.2 is not a "rough" finish — it is the industry standard default for a reason.
• Every step smoother costs more — and the cost curve is exponential, not linear.
• Functional needs justify tighter finishes. Cosmetic preferences should be evaluated against the cost they add.
• Vague notes cost money. "Smooth finish" and "no visible tool marks" are polishing orders in disguise.
• Specify by exception. Default Ra 3.2, call out tighter finish only where a functional reason exists.

The next time a machining quote comes back higher than expected, look at the finish callouts first. There's a good chance the answer is right there — and a small change to the drawing could save 20–30% on the part price without changing a single tolerance.
